The AD5752AREZ is a complete, dual, 16-bit, serial input, voltage output Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc.. Built on the proprietary iCMOS® process technology, this high-performance component offers software-programmable output ranges including +5 V, +10 V, +10.8 V, ±5 V, ±10 V, and ±10.8 V. Its combination of integrated reference buffers, low unadjusted error (TUE), and asynchronous CLR functionality makes it an industry standard for precision control systems requiring dense channel counts and flexible voltage configurations.
If your production line or R&D cycle depends on this precision component, finding a stable AD5752AREZ distributor is critical. The AD5752AREZ is currently in stock and ready for immediate shipping at Perceptive Components. As a leading independent distributor, we ensure 100% authenticity and rapid global delivery. Whether you need to secure a small batch for urgent testing or a high-volume allocation for mass assembly, you can safely buy AD5752AREZ online through our verified sourcing pipeline, bypassing long factory lead times.

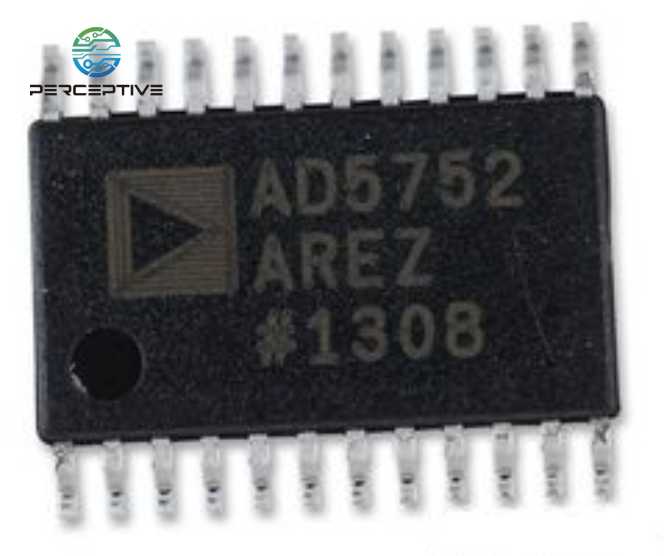

Part Number: AD5752AREZ
Manufacturer: Analog Devices Inc.
Stock: 15,000 pcs
Date Code: 2023+
Package: TSSOP-24
Key Specifications of AD5752AREZ
For hardware engineers and component procurement managers, understanding physical, environmental, and moisture handling tolerances is as vital as electrical performance. Below are the critical technical specifications for the Analog Devices Inc. AD5752AREZ:
Parameter | Technical Specification |
Manufacturer | Analog Devices Inc. (ADI) |
Resolution | Dual 16-Bit |
Settling Time | 10 µs typical |
Interface Type | DSP-/Microcontroller-Compatible 3-Wire Serial Interface |
Supply Voltage Range | Single Supply (+4.5 V to +16.5 V) / Dual Supplies (±4.5 V to ±16.5 V) |
Operating Temperature | −40°C to +85°C (Industrial Grade) |
Package Type | 24-Lead TSSOP (Thin Shrink Small Outline Package) |
Moisture Sensitivity Level (MSL) | MSL 3 (Requires standard JEDEC dry-pack handling and floor-life monitoring) |
RoHS/REACH Status | RoHS Compliant & Lead-Free (The "REZ" suffix indicates green compliance) |
Standard Packaging | Tube (Standard industrial shipping rail) or Tape & Reel |
Applications of ADI AD5752AREZ
The high linearity (±16 LSB Max INL) and software-configurable output ranges of the AD5752AREZ make it highly versatile across several core industrial sectors in North America and European markets:
Industrial Automation & Process Control: Used in Programmable Logic Controllers (PLCs) and distributed control systems to drive actuators, valves, and precision motors.
Closed-Loop Servo Control: Provides stable, low-noise control loops for robotics and advanced automated manufacturing equipment.
Automotive Test and Measurement: Integrated into hardware-in-the-loop (HIL) testing rigs and automotive diagnostic simulators that demand high repeatability under industrial temperature ranges.
Scientific Instrumentation: Deployed in laboratory data acquisition systems where precise unipolar or bipolar voltage generation is mandatory

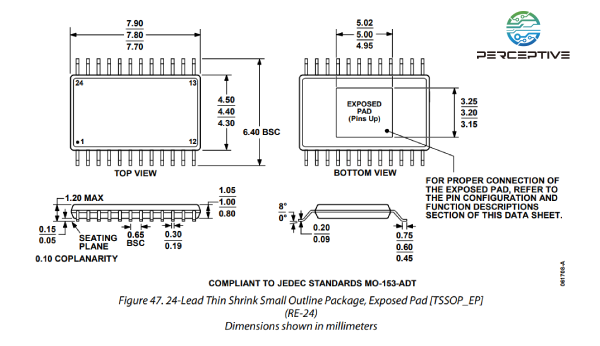

Package Information of AD5752AREZ
The ADI AD5752AREZ is housed in a low-profile 24-lead TSSOP package featuring an Exposed Pad (Pins Up/Down configuration) on the bottom side.
Dimensions: Approximately $7.80~mm \times 4.40~mm$ body dimensions with a maximum height of 1.20 mm and a tight 0.65 mm lead pitch.
Thermal Management Note: The integration of the exposed thermal pad significantly improves power dissipation characteristics. Engineers must ensure proper copper connection on the PCB layout to optimize thermal impedance and maintain absolute 16-bit accuracy across fluctuating system temperatures.
Why Source ADI AD5752AREZ from Perceptive Components?
Navigating the independent component channel requires a distribution partner that prioritizes supply chain security. Here is why global procurement departments trust Perceptive Components:
Inventory Stability: We maintain a massive active stock of both current production line items and hard-to-find or legacy parts. This buffer inventory helps you insulate your operations against sudden factory allocation cycles.
Rigorous Quality Assurance: Counterfeit avoidance is our top priority. Every batch of Analog Devices Inc. parts undergoes extensive, multi-stage incoming inspection protocols to guarantee 100% genuine, factory-conforming components.
Fast Global Logistics: Utilizing centralized shipping hubs, we provide rapid, reliable delivery to North America, Europe, and Asia, ensuring your line-down situations are resolved in days, not months.
Competitive AD5752AREZ Price: By leveraging direct sourcing networks and strong global partnerships, we eliminate unnecessary supply chain layers to deliver the best market pricing without compromising on quality or traceability.
Pin-Compatible Alternatives & Cross-References
When facing acute component shortages or evaluating long-term bill-of-materials (BOM) risk, knowing your drop-in replacement options is critical. The AD5722/AD5732/AD5752 family shares identical package layouts and architectures:
AD5732AREZ (14-Bit Version): Direct drop-in replacement if your system can tolerate a downgrade to 14-bit resolution. It uses the exact same 24-lead TSSOP footprint and register structure.
AD5722AREZ (12-Bit Version): Functional equivalent with 12-bit resolution, ideal for cost-down redesigns or urgent material substitutions where full 16-bit precision is non-essential.
If you are facing extended factory lead time issues or need to verify cross-compatibility, contact Perceptive Components for recommended drop-in replacements and structural BOM analysis.
Buy AD5752AREZ Online Now
Looking for the Analog Devices AD5752AREZ with zero lead time? Perceptive Components has verified, ready-to-ship spot stock available in our secure warehouse today. Skip extended factory allocation delays and safeguard your production schedule with our immediate global shipping options.
Don't let supply chain bottlenecks stall your manufacturing timeline. Perceptive Components is your trusted independent distribution partner for high-quality Analog Devices precision DACs. Request a Quote for AD5752AREZ today—our dedicated procurement team is standing by to provide real-time pricing and live inventory availability.

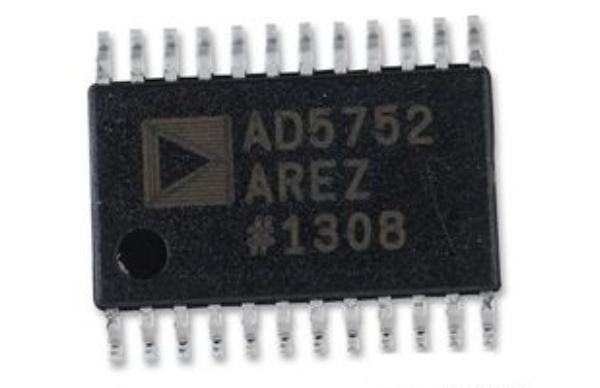

Download the official Analog Devices AD5752AREZ Datasheet PDF for full technical and packaging specifications.
Perceptive Components is a leading global distributor specializing in TI, NXP, Microchip, and ST components. We excel in sourcing ready-to-ship spot stock for both new designs and EOL/scarce materials. Every part undergoes our rigorous professional QC protocol (X-Ray, Decapsulation, and Electrical Testing) to ensure 100% authenticity and traceability. From Aerospace to Automotive, we provide reliable supply chain solutions with rapid global delivery.
