Intel Altera EP3C25E144I7N Datasheet

The Intel EP3C25E144I7N is a cornerstone of the Cyclone III device family, renowned for delivering a unique combination of high functionality, low power consumption, and cost-efficiency. Built on Taiwan Semiconductor Manufacturing Company's (TSMC) low-power (LP) process technology, this FPGA is engineered for cost-sensitive, high-volume applications where power budgets are tight.

The Intel EP3C25E144I7N is currently In Stock and ready for immediate shipping at Perceptive Components. As a leading independent distributor, we ensure 100% authenticity, rigorous quality control, and rapid global delivery to keep your production lines moving.

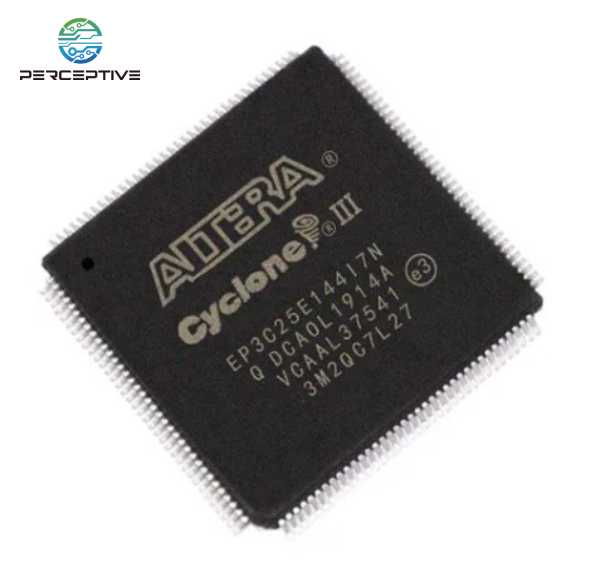

Part Number: EP3C25E144I7N

Manufacturer: Intel/Altera

Stock: 8,000 pcs

Date Code: 2024+

Package: EQFP-144

Key Specifications of EP3C25E144I7N

The EP3C25E144I7N belongs to the Cyclone III variant, designed for the lowest power and highest functionality within its class. Below are the core technical parameters for this specific device:

Core Features of EP3C25E144I7N

The EP3C25E144I7N architecture is optimized for low-power operation through Intel's power-aware design flow. Key architectural highlights include:

• Logic Array Blocks (LABs): Each LAB consists of 16 logic elements (LEs), the smallest units of logic, featuring a four-input look-up table (LUT) and a register.

• M9K Memory Blocks: These blocks operate at up to 315 MHz and can be configured as RAM, FIFO buffers, or ROM.

• Robust Clock Management: Four PLLs provide frequency synthesis and phase shifting, allowing for sophisticated system clock management without reconfiguring the device.

• Advanced I/O Support: Supports a wide range of I/O standards including LVTTL, LVCMOS, SSTL, HSTL, and LVDS. It also features adjustable slew rates and multi-value on-chip termination (OCT) to ensure signal integrity.

Applications of EP3C25E144I7N

Due to its high density-to-power ratio, the EP3C25E144I7N is ideal for:

• Portable and Handheld Devices: Benefiting from extended battery life due to low static power.

• Digital Signal Processing (DSP): Utilizing 66 embedded multipliers for functions like FIR and FFT.

• Industrial Automation: Operating reliably in thermally challenged environments.

• Video and Image Processing: High data throughput via high-speed differential interfaces like mini-LVDS and RSDS.

Why Source EP3C25E144I7N from Perceptive Components?

When you need to buy EP3C25E144I7N online, choosing the right EP3C25E144I7N distributor is critical for maintaining your supply chain integrity.

1. Inventory Stability: We maintain a massive stock of Intel components, including both current production units and hard-to-find legacy parts.

2. Quality Assurance: Every EP3C25E144I7N undergoes rigorous inspection processes to guarantee 100% genuine silicon.

3. Competitive Pricing: We leverage direct sourcing to provide the best available EP3C25E144I7N price in the market.

4. Global Logistics: Our streamlined distribution network ensures fast shipping to North America, Europe, and Asia, minimizing your project lead times.

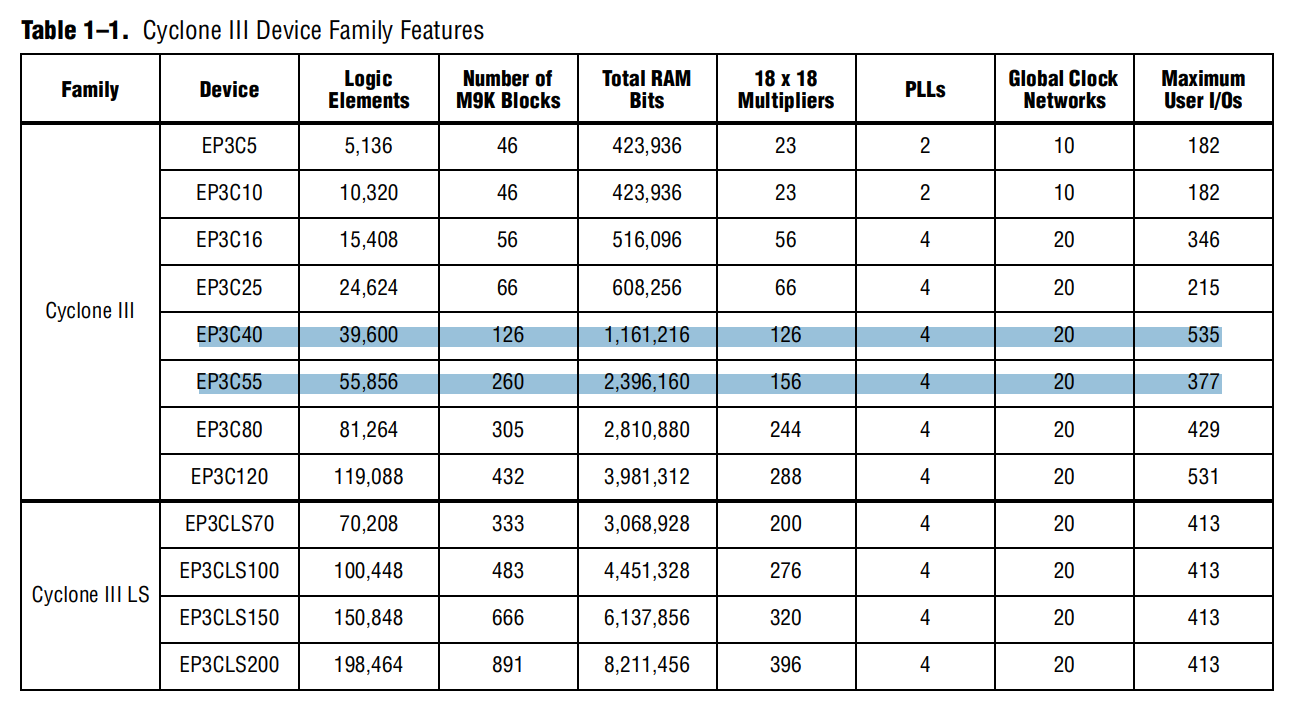

Altera EP3C25E144I7N Alternatives

The Cyclone III family supports vertical migration, allowing you to move to other devices with the same package footprint to optimize density and cost. If you require more logic, the EP3C40 or EP3C55 may be suitable. However, please note that vertical migration is not supported between standard Cyclone III and Cyclone III LS devices.

If you are facing lead time issues, contact Perceptive Components for recommended drop-in replacements or higher-density alternatives.

Request a Quote for EP3C25E144I7N

Don't let supply chain delays stall your innovation. Perceptive Components is your trusted partner for high-quality Intel FPGAs.Request a Quote for EP3C25E144I7N. Our team is standing by to provide real-time pricing and availability.

Looking for ADuM7441CRQZ with no lead time? Perceptive Components has verified ready-to-ship spot stock available in our warehouse today. Skip the factory delays and secure your production schedule with our immediate global shipping.

Download the official Intel EP3C25E144I7N Datasheet for full technical specifications.
