The OP162GSZ is a high speed rail to rail operational amplifier developed for precision analog applications that require low noise, low offset voltage, and stable performance under low supply voltage conditions. As modern electronic systems continue moving toward compact, energy efficient, and high accuracy architectures, components like the OP162GSZ remain highly valuable for engineers and procurement specialists working in industrial automation, portable instrumentation, communication equipment, and mixed signal systems.
Designed for reliable operation across a wide industrial temperature range, the OP162GSZ combines fast signal processing capability with low power consumption. Its balanced electrical characteristics make it suitable for both new product development and long lifecycle maintenance applications where stable analog performance is critical.
OP162GSZ Datasheet Overview

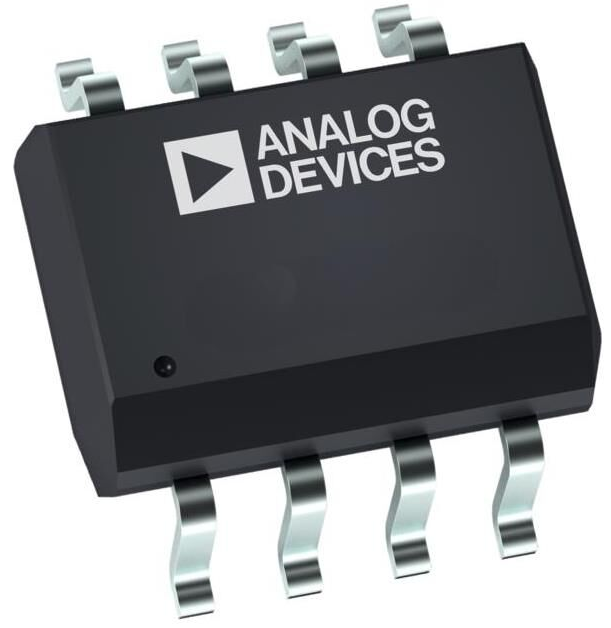

The OP162GSZ belongs to a family of precision operational amplifiers optimized for rail to rail output operation. It supports single supply voltages from 2.7 V to 12 V and can also operate using dual supplies up to ±6 V. The device is packaged in an 8 lead SOIC configuration, helping designers save board space in compact electronic systems.
Key electrical specifications of the OP162GSZ include:
Gain bandwidth product of 15 MHz
Slew rate of 13 V per microsecond
Typical input offset voltage of 45 µV
Low voltage noise density of 9.5 nV√Hz at 1 kHz
Typical supply current of approximately 600 µA
Rail to rail output swing
Unity gain stable operation
Operating temperature range from −40°C to +125°C
These characteristics allow the amplifier to support both precision signal conditioning and relatively high speed analog processing without excessive power consumption.
Main Features of OP162GSZ
High Speed Analog Performance
The 15 MHz bandwidth and fast slew rate enable the OP162GSZ to handle rapidly changing analog signals with high accuracy. This is especially useful in data acquisition systems, sensor interfaces, and communication equipment where signal integrity directly affects system performance.
Fast settling capability also improves the amplifier's suitability for driving analog to digital converters. In sampling circuits, slow settling can introduce conversion errors, but the OP162GSZ helps minimize this issue through stable transient behavior.
Low Noise Characteristics
Noise reduction is increasingly important in modern electronics, especially in instrumentation and precision measurement systems. The OP162GSZ provides low voltage noise density, helping engineers maintain clean analog signal paths.
Low noise performance benefits applications such as audio electronics, industrial monitoring equipment, and sensor conditioning circuits where weak analog signals must be amplified without introducing excessive distortion.
Low Offset Voltage and Stability
The amplifier features very low offset voltage and low temperature drift, improving measurement consistency over changing environmental conditions. This helps reduce calibration requirements in industrial and portable systems.
Stable offset performance is particularly valuable in precision analog front ends where small signal variations must be accurately detected and amplified.
Rail to Rail Output Operation
The rail to rail output structure allows the amplifier to use nearly the entire supply voltage range. This maximizes dynamic range in low voltage systems and helps designers avoid additional power supply complexity.
Portable electronic products and embedded control modules often rely on low voltage power rails, making rail to rail amplifiers an efficient solution for maintaining signal amplitude and system efficiency.
Low Power Consumption
With relatively low supply current, the OP162GSZ supports energy efficient system design. Lower power dissipation can improve thermal management and extend battery life in portable devices.
This balance between speed and power efficiency is one of the reasons the amplifier remains practical for modern compact electronics.
Typical Applications of OP162GSZ
Portable Instrumentation
Portable test equipment requires precision analog performance together with low power operation. The OP162GSZ provides accurate signal amplification while helping reduce overall power consumption.
ADC Buffer and Driver Circuits
The amplifier's fast settling behavior and wide bandwidth make it suitable for buffering analog signals before digital conversion stages. Stable ADC driving improves conversion accuracy and system responsiveness.
Industrial Automation
Industrial control systems frequently operate in electrically noisy and temperature variable environments. The OP162GSZ supports reliable analog processing in industrial sensors, monitoring devices, and automation equipment.
Audio Processing Equipment
Low distortion and low noise characteristics make the amplifier useful in portable audio systems, signal conditioning stages, and headphone amplification applications where clean signal reproduction is important.
Wireless Communication Systems
Communication modules and wireless infrastructure often require stable analog amplification with low power consumption. The OP162GSZ can support analog signal conditioning functions within RF and mixed signal environments.
Advantages for Modern Electronic Systems
Modern electronic products increasingly require components that combine compact size, low energy consumption, and reliable precision performance. The OP162GSZ addresses these demands by delivering fast analog capability without excessive complexity or thermal burden.
Its wide operating voltage range also provides flexibility for engineers working across different power architectures. Whether used in portable electronics or industrial platforms, the amplifier offers dependable performance for a broad range of analog circuit requirements.
In long lifecycle industries such as industrial automation and instrumentation, component reliability and sourcing stability remain important considerations. Devices like the OP162GSZ continue to be widely used because they offer a proven balance of performance and practical implementation.
Conclusion
The OP162GSZ operational amplifier delivers an effective combination of low noise, rail to rail output capability, fast bandwidth performance, and low power consumption. These features make it suitable for precision instrumentation, ADC interfaces, industrial control systems, communication equipment, and audio electronics.
For engineers and sourcing professionals looking for reliable supply channels, Perceptive Components provides inventory support and global sourcing services for OP162GSZ and a wide range of operational amplifier solutions.
