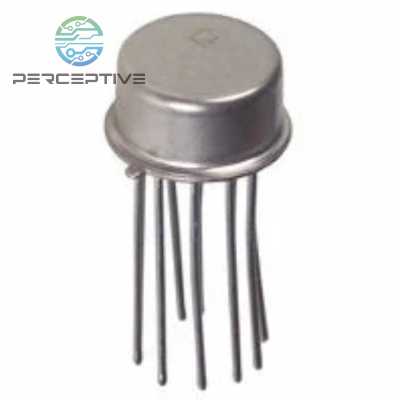

In modern electronic systems, accurately measuring signal power is essential for ensuring performance, safety, and reliability. The AD536AJHZ, developed by Analog Devices, is a precision true RMS-to-DC converter designed to deliver accurate measurement results even with complex and non-sinusoidal waveforms. For engineers and procurement professionals, this component offers a reliable and efficient solution for signal conditioning and instrumentation.
Accurate True RMS Conversion for Complex Signals
Unlike traditional rectifier-based solutions that rely on averaging methods, the AD536AJHZ performs true RMS conversion. This means it calculates the actual power of an input signal regardless of waveform shape, including signals with distortion, noise, or mixed AC/DC components.
This capability is especially important in today's electronics, where signals are rarely ideal sine waves. Whether in switching power systems, audio processing, or industrial environments, the AD536AJHZ ensures that engineers obtain precise and consistent measurements.
The device supports a wide input dynamic range and can handle high crest factor signals while maintaining excellent accuracy. This makes it suitable for applications requiring stable and repeatable performance under varying signal conditions.
Key Features and Technical Advantages
The AD536AJHZ stands out due to its combination of precision, simplicity, and integration. It incorporates laser-trimmed internal components to achieve high accuracy, typically within ±0.5%, reducing the need for extensive external calibration.
Another important feature is its wide bandwidth capability, allowing it to process signals across a broad frequency spectrum. This flexibility enables the device to be used in both low-frequency measurement systems and higher-frequency signal monitoring applications.
The inclusion of a logarithmic (dB) output further enhances its usability. Engineers can directly obtain decibel-scaled signal levels without additional conversion circuits, simplifying system design in applications such as audio level detection and RF signal measurement.
In addition, the AD536AJHZ operates with relatively low power consumption and supports flexible power supply configurations, including both single and dual supply systems. This makes it adaptable to a wide range of design requirements.
Simplified Design and System Integration
From a design perspective, the AD536AJHZ significantly reduces circuit complexity. Traditional RMS measurement circuits often require multiple operational amplifiers and complex calibration processes. By integrating these functions into a single chip, the AD536AJHZ minimizes component count and simplifies PCB layout.
The device requires only a few external components, typically for setting the averaging time constant. This not only reduces design time but also improves system reliability by lowering the risk of component mismatch or drift.
For procurement teams, fewer external components translate into lower bill-of-materials (BOM) costs and easier sourcing. This is particularly valuable in large-scale production or long-term industrial projects.
Typical Applications of AD536AJHZ
The versatility of the AD536AJHZ allows it to be used across multiple industries and application scenarios:
Test and Measurement Equipment:
The device is widely used in digital multimeters, RMS voltmeters, and signal analyzers, where accurate measurement of non-sinusoidal signals is critical.
Industrial Power Monitoring:
In industrial systems, it enables precise monitoring of AC signals and power levels, supporting efficient energy management and equipment protection.
Audio Signal Processing:
The AD536AJHZ provides accurate level detection for complex audio signals, ensuring consistent performance in professional audio equipment and sound systems.
Sensor Signal Conditioning:
It converts variable AC signals from sensors into stable DC outputs, allowing easy interfacing with analog-to-digital converters and microcontrollers.
RF and Communication Systems:
With its wide bandwidth and dB output capability, the device is suitable for signal strength measurement and calibration in communication equipment.
Procurement Perspective: Long-Term Value and Availability
Despite the emergence of newer integrated solutions, the AD536AJHZ remains highly relevant in both new designs and legacy systems. Its proven reliability, stable performance, and ease of integration make it a preferred choice for engineers seeking dependable RMS conversion.
For procurement professionals, consistency and availability are key factors. Perceptive Components offers reliable sourcing for AD536AJHZ, ensuring stable supply and supporting projects that require long product lifecycles.
This makes the component particularly suitable for industrial, medical, and instrumentation applications where redesign costs must be minimized.
Conclusion
The AD536AJHZ is a robust and accurate true RMS-to-DC converter that simplifies signal measurement in complex electronic environments. With its high precision, wide bandwidth, and integrated design, it continues to be a valuable solution for engineers and procurement teams alike.
Whether used in industrial monitoring, audio systems, or test equipment, the AD536AJHZ delivers dependable performance and long-term value—making it a smart choice for modern electronic designs.
