In precision analog and mixed-signal systems, voltage references play a critical role in ensuring accuracy, stability, and repeatability. The REF192ESZ is a 2.5V precision voltage reference designed to deliver consistent performance in applications where low power consumption and high accuracy are both essential. Widely used in industrial, instrumentation, and portable electronics, this device offers a practical balance between performance and efficiency for engineers and procurement professionals.

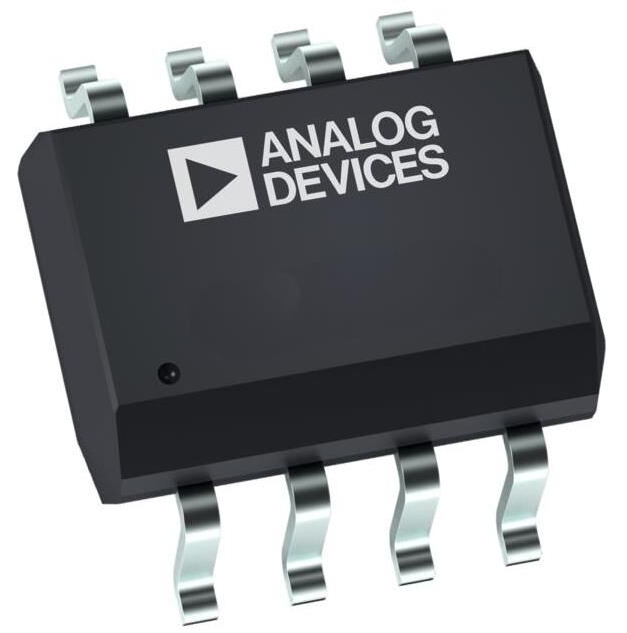

REF192ESZ Datasheet Overview
The REF192ESZ belongs to a family of precision micropower voltage references known for their stable output and low drift characteristics. It provides a fixed 2.5V output with high initial accuracy, typically within ±2 mV. This level of precision makes it suitable for systems that require reliable voltage baselines for measurement and signal conversion.
One of the key highlights of the device is its low temperature coefficient, typically around 5 ppm/°C. This ensures minimal variation in output voltage across a wide temperature range, making it suitable for use in harsh environments. The device operates across an extended temperature range, supporting industrial-grade applications.
In terms of power efficiency, the REF192ESZ consumes a maximum supply current of approximately 45 μA during normal operation. It also includes a sleep mode that reduces current consumption to about 15 μA, which is particularly useful for energy-sensitive applications such as battery-powered systems.
The device supports an output current of up to 30 mA, allowing it to drive multiple loads or serve as a reference for several analog components without requiring additional buffering in many cases. Its low dropout characteristic enables it to maintain accurate output even when the input voltage is only slightly higher than the output voltage.
Key Features and Advantages
High Accuracy and Stability
The REF192ESZ is designed with precision in mind. Its tight initial accuracy and low temperature drift help maintain consistent performance over time. This is especially important in applications such as data acquisition and calibration systems, where even minor deviations can impact overall system performance.
Low Power Consumption
With a supply current in the microampere range, the device is ideal for low-power designs. The inclusion of a sleep mode further enhances its suitability for systems that require intermittent operation or power-saving strategies.
Low Dropout Operation
The ability to operate with minimal voltage headroom is a major advantage in modern low-voltage designs. This allows the REF192ESZ to function effectively in systems powered by batteries or regulated low-voltage rails.
Strong Output Drive Capability
Unlike many low-power references, the REF192ESZ can deliver up to 30 mA of output current. This reduces the need for external amplification or buffering, simplifying circuit design and reducing overall component count.
Built-In Protection and Reliability
The device includes protection features such as short-circuit protection, ensuring safe operation under fault conditions. Its internal design also supports stable performance under varying load and line conditions.
Applications of REF192ESZ
Data Acquisition and Conversion
The REF192ESZ is widely used in systems that include analog-to-digital converters (ADCs) and digital-to-analog converters (DACs). A stable reference voltage is essential for maintaining conversion accuracy, and this device provides the consistency required for high-resolution systems.
Industrial Instrumentation
In measurement and control systems, voltage stability directly impacts accuracy. The REF192ESZ supports applications such as sensor interfaces, calibration equipment, and process monitoring systems.
Portable and Battery-Powered Devices
Thanks to its low power consumption and sleep mode functionality, the device is well suited for handheld instruments, portable medical devices, and remote monitoring systems.
Smart Sensors and IoT Systems
Modern IoT applications often require compact, energy-efficient components. The REF192ESZ provides a reliable reference solution for distributed sensing and edge devices.
Energy-Constrained Systems
In solar-powered or energy-harvesting applications, efficient use of limited power is critical. The low dropout and micropower characteristics of the REF192ESZ make it a strong fit for such environments.
Practical Integration Considerations
To achieve optimal performance, designers should follow several practical guidelines. A 1 μF capacitor is typically recommended at the output to ensure stability. Proper input bypassing can improve transient response and reduce noise. If the sleep function is not used, the corresponding pin should be connected appropriately to maintain normal operation.
It is also important to consider thermal effects during soldering, as extreme temperatures may introduce slight shifts in output voltage. While these shifts are generally small, they should be accounted for in high-precision designs.
Conclusion
The REF192ESZ stands out as a reliable and efficient 2.5V precision voltage reference for a wide range of analog applications. Its combination of high accuracy, low power consumption, and robust performance makes it a practical choice for engineers seeking dependable voltage reference solutions.
For sourcing needs, Perceptive Components provides REF192ESZ with available stock, helping procurement teams secure high-quality components with confidence and efficiency.
