USBC PD Controller from Infineon EZPD Product Family

Published Time: 2023-11-07 14:38:21
Infineon has launched the EPR E-marker cable assembly controller, which provides overvoltage protection up to 54 V for USB-C passive cables.

USB-C has rapidly gained popularity in the industry thanks to its ultra-thin design, user-friendly universal connector experience and versatility with support for multiple data protocols such as USB4, Thunderbolt and HDMI. USB-C can support a wide range of data protocols such as USB4, Thunderbolt and HDMI, making it very versatile. In addition, USB-C can support up to 240 W of charging power, a feature that makes it the power connector of choice for a wide range of applications. To meet the growing demand for reliable end-to-end power supply and data transfer capabilities in modern mobile devices, Infineon Technologies has introduced the EZ-PD™ CMG2, a more powerful USB-C Electronically Marked Cable Assembly (EMCA) controller designed for USB-C, USB4 and Thunderbolt connectors that support EPR (Extended Power Range). The controller is designed to provide a robust USB-C powered (PD) solution for applications such as USB-C, USB4 and Thunderbolt passive cables that support EPR (Extended Power Range).





The USB-C PD controllers in Infineon's EZ-PD™ product family are the industry's most comprehensive USB-C power solution. the EZ-PD™ CMG2 (Cable Marker Generation 2) is an EMCA-specific controller designed for passive non-Thunderbolt and Thunderbolt Type-C cables. The EZ-PD™ CMG2 (Cable Marker Generation 2) is an EMCA-specific controller designed for passive non-Thunderbolt cables and Thunderbolt Type-C cables, and supports USB-PD 3.1 and Type-C 2.1 standards. USB-C EMCA cables based on the EZ-PD™ CMG2 support USB4 and TBT4 interface data rates and up to 240 W (48 V/5 A) charging power. 54 V). In addition, the controller has a reduced RA for lower power consumption and an integrated oscillator and IEC ESD (Electrostatic Discharge) protection for operation without an external clock and external ESD.



The new controller offers configurable 47 bytes of memory for storing vendor and cablespecific configuration data and is capable of operating over the 2.7 V to 5.5 V VCONN supply voltage range. Among other things, the CC, VCONN1, and VCONN2 pins support high-voltage protection up to 54 V, which prevents accidental shorting of the high-voltage VBUS pins on the Type-C connector, thus increasing safety in use. In addition, the controller is rated for operation over the standard industrial temperature range of -40°C to +85°C, and the CC, VCONN1, and VCONN2 pins are designed with system-level ESD protection to ensure reliability and durability in harsh environments.

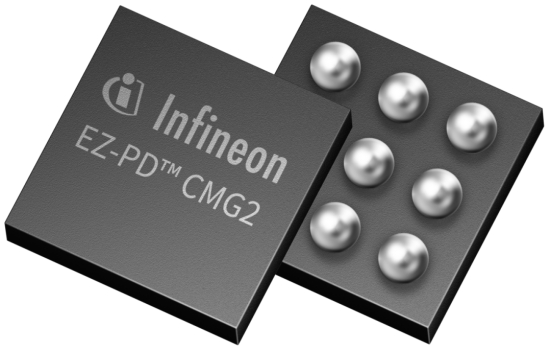

The EZ-PD™ CMG2 controller is seamlessly compatible with a wide range of USB-C devices and cables. It offers a single-chip solution with a size of only 3.3 mm², simplifying design and reducing development time. With its excellent system reliability and compatibility, manufacturers can introduce cost-effective, simple designs with smaller board footprints.
