The MAX232EIDR is a dual driver/receiver transceiver engineered by Texas Instruments for high-reliability TIA/RS-232-F and ITU V.28 serial communication channels
The MAX232EIDR is currently In Stock and ready for immediate shipping at Perceptive Components. As a leading independent distributor, we ensure 100% authenticity and rapid global delivery.
If you are looking to buy MAX232EIDR online, source reliable inventory, or check competitive Texas Instruments MAX232EIDR price tiers for wholesale orders, Perceptive Components is your verified partner.
Part Number: TPS82085SILR
Manufacturer: Texas Instruments
Stock: 6K pcs
Date Code: 26+
Package: 8-Pin uSiP (SIL), 2.8 × 3.0 × 1.3 mm
Key Technical Specifications
The following specs reflect the official manufacturer parameter details for the Texas Instruments MAX232EIDR driver/receiver IC
| Parameter | Specification |
| Manufacturer | Texas Instruments |
| Part Number | MAX232EIDR |
| Supply Voltage | 4.5V to 5.5V (Nominal 5V) |
| Data Rate | Up to 250 kbit/s |
| Number of Drivers/Receivers | 2 Drivers / 2 Receivers |
| ESD Protection (Bus Pins) | ±15kV HBM / ±15kV Air / ±8kV Contact |
| Operating Temperature | -40°C to 85°C |
| RoHS/REACH Status | RoHS Compliant / REACH Compliant |
| Moisture Sensitivity Level (MSL) | Level-1-260C-UNLIM |
| Package / Case | SOIC (D-16) |
Applications of MAX232EIDR
Designed to convert TTL/CMOS logic signals into robust TIA/RS-232-F levels and vice versa
Industrial Automation & Terminals: Connecting Microcontrollers (UART) to RS-232 legacy industrial machinery, PLCs, and barcode readers
Telecommunications & Networking: Serving as the physical interface layer for modems, routers, network switches, and diagnostic serial console ports
Embedded Computing & PC Peripherals: Enabling legacy serial port connectivity across single-board computers, POS terminals, and medical devices
Battery-Powered Systems: Utilizing a low 8mA typical current draw and single 5V charge-pump operation to reduce power requirements

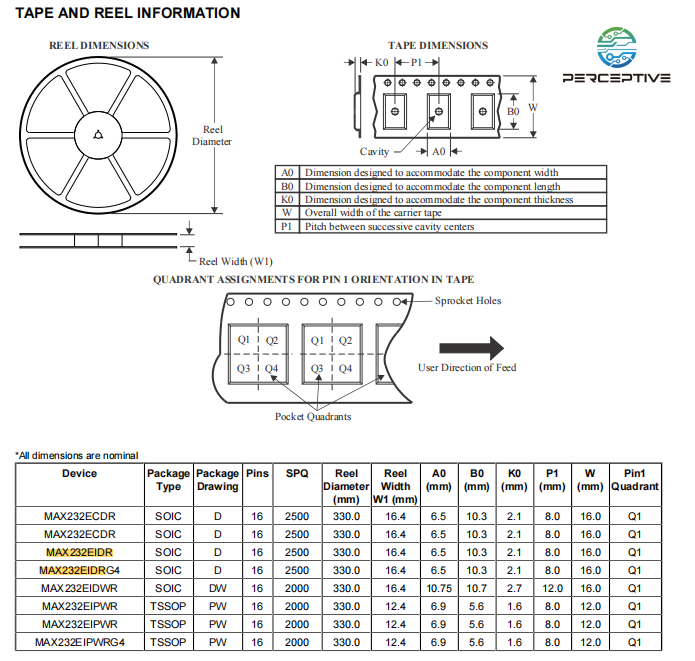

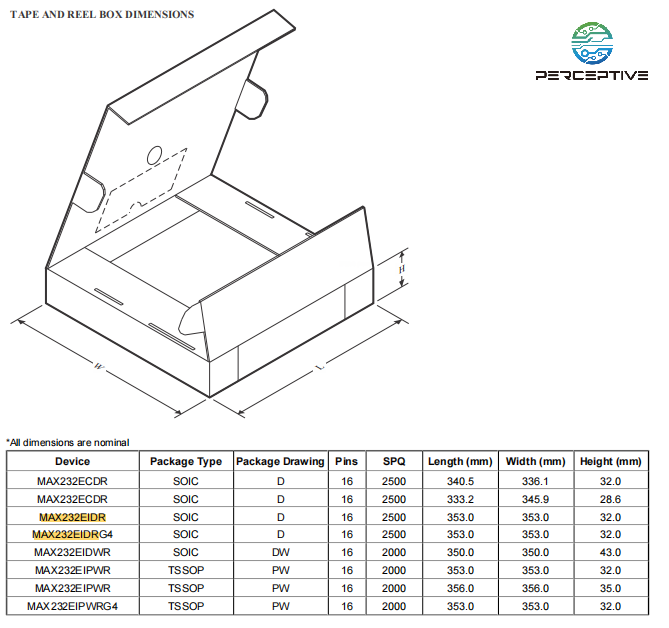

Package Dimensions & Pin Configuration
The MAX232EIDR comes in a standard 16-pin SOIC (D) package
Package Type: SOIC-16 (Plastic Small Outline)
Dimensions: 9.90 mm × 3.90 mm body length/width (6.00 mm total width including pins)
Pin Pitch: 1.27 mm (0.050 in) center-to-center pin spacing
Why Source MAX232EIDR from Perceptive Components?
Choosing the right MAX232EIDR distributor is essential to avoid counterfeit parts and supply chain delays. Perceptive Components provides B2B electronics procurement solutions tailored for OEMs and EMS providers:
Inventory Stability: We maintain massive physical stock in Shenzhen for both active line items and hard-to-find components
Quality Assurance: Every batch of Texas Instruments chips undergoes visual, solderability, and pin-marking verification to ensure 100% genuine components.
Global Logistics: Express shipping channels across North America, Europe, and Asia ensure your production lines stay operational without interruption.
Competitive Pricing: Direct factory sourcing allows us to offer market-leading pricing for MAX232EIDR and broader Texas Instruments product lines
Cross-Series & Alternative Part Numbers of MAX232EIDR
The MAX232EIDR is readily available in stock at Perceptive Components. If your project has specific package requirements or temperature constraints, consider these pin-compatible options within the same Texas Instruments MAX232 series family
MAX232EIDRG4: Same 16-pin SOIC package with green/Pb-free specification
MAX232ECDR: Commercial temperature rating (0°C to 70°C) in 16-pin SOIC Tape & Reel packaging
MAX232EIPWR: Industrial temperature range in a compact 16-pin TSSOP package for space-constrained PCB layouts
MAX232EIN: Industrial grade variant supplied in a 16-pin Through-Hole PDIP package
Request a Quote Today!
Secure your supply of Texas Instruments MAX232EIDR drivers with fast dispatch directly from our facility
