The STMicroelectronics STM8S003F3P6TR is an 8-bit STM8S value-line microcontroller designed for cost-sensitive embedded applications requiring reliable control, analog sensing, and standard communication interfaces. It integrates a 16 MHz STM8 core, 8 KB Flash memory, 1 KB RAM, 128-byte true data EEPROM, 10-bit ADC, timers, UART, SPI, and I²C in a compact 20-pin TSSOP package.
The STM8S003F3P6TR is currently in stock at Perceptive Components and ready for immediate shipping, with 5K pcs available, Date Code 26+. As an independent electronic components distributor, Perceptive Components supports global B2B customers with genuine components, responsive sourcing, competitive pricing, and reliable international delivery.
Part Number: STM8S003F3P6TR
Manufacturer: STMicroelectronics
Stock: 5K pcs
Date Code: 26+
Package: 20-Pin TSSOP (P6), 0.65 mm pitch
Packing: Tape & Reel (TR)
Operating Temperature: -40°C to +85°C
Core: 8-bit STM8, 16 MHz
Key Technical Specifications of ST STM8S003F3P6TR
| Parameter | Description |
| Core | 8-bit STM8 |
| Maximum CPU Frequency | 16 MHz |
| Program Memory | 8 KB Flash |
| RAM | 1 KB |
| Data EEPROM | 128 bytes |
| ADC | 10-bit, up to 5 channels |
| GPIO | 16 |
| Communication | UART, SPI, I²C |
| Operating Voltage | 2.95 V to 5.5 V |
| Operating Temperature | -40°C to +85°C |
| Package | TSSOP-20 |
| Packing | Tape & Reel (TR) |
| RoHS Compliance | Ecopack2 |
| REACH Status | REACH Unaffected |
| MSL | MSL 1 |
The device combines multiple embedded peripherals in a low-density MCU architecture, helping reduce external component requirements in compact control designs. Its 16 MHz STM8 core, integrated memory, timers, ADC, watchdog functions, and serial interfaces provide a practical platform for general-purpose embedded control. Current ST product information identifies the STM8S003F3P6TR as an active TSSOP-20 industrial-grade product with Ecopack2 compliance.
Applications of STM8S003F3P6TR
The STM8S003F3P6TR is suitable for embedded control systems that require compact integration, reliable processing, and multiple peripheral interfaces, including:
Industrial Control: Suitable for control panels, small automation controllers, and embedded monitoring functions.
Motor and Actuator Control: Its timers, PWM capabilities, and control-oriented peripherals can support motor-control and actuator applications.
Consumer Electronics: Can be integrated into appliances, user-interface controls, and compact electronic control boards.
Sensor and Measurement Systems: The integrated 10-bit ADC with up to five external multiplexed channels supports analog signal acquisition and monitoring.
Embedded Communication: UART, SPI, and I²C interfaces support communication between the MCU and external peripherals or system modules.

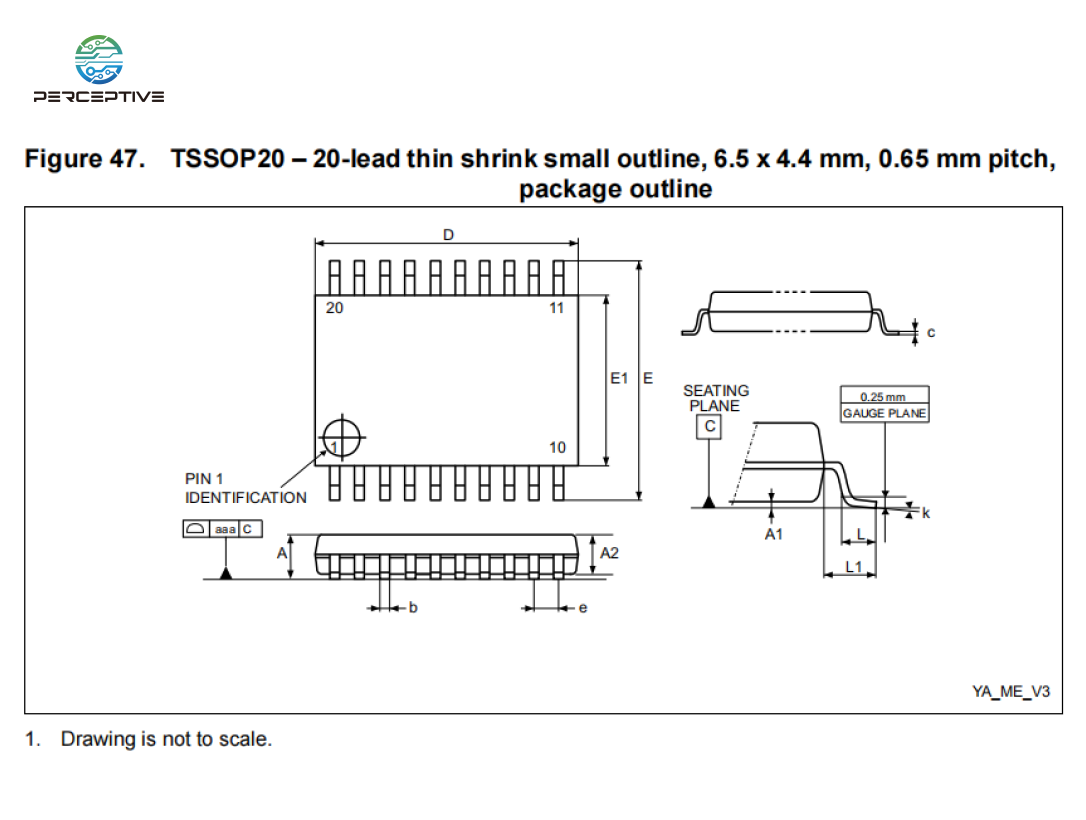

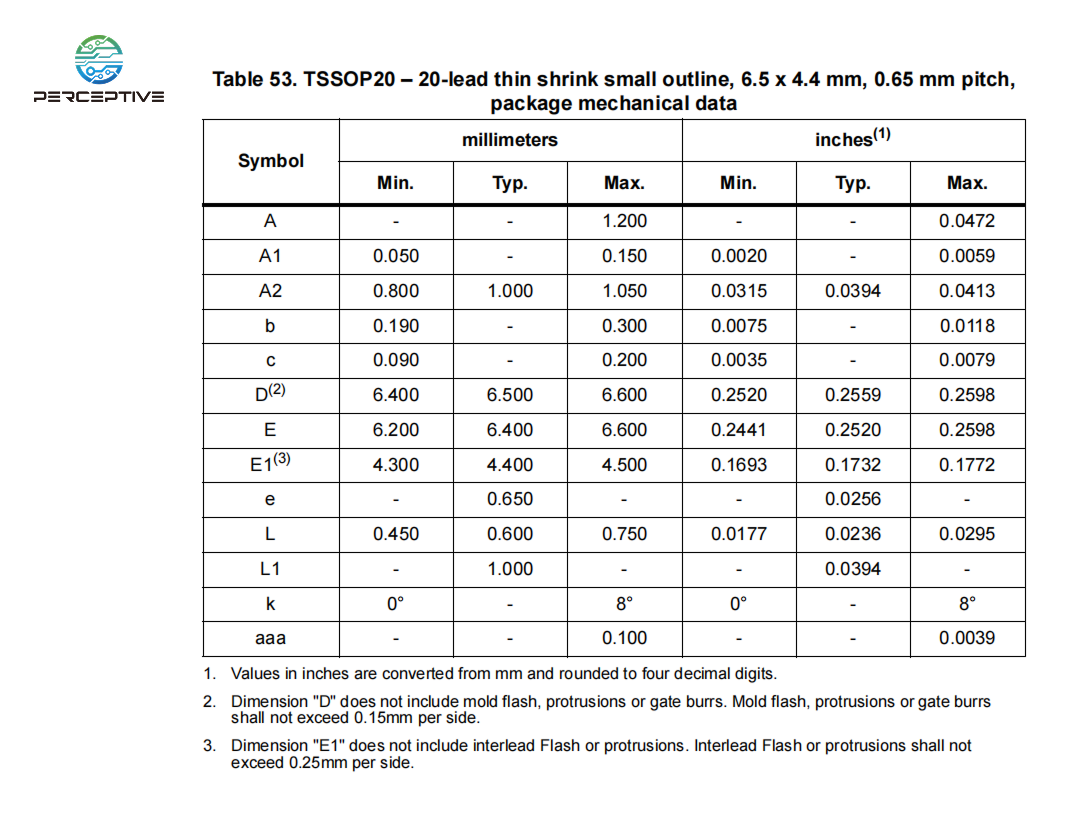

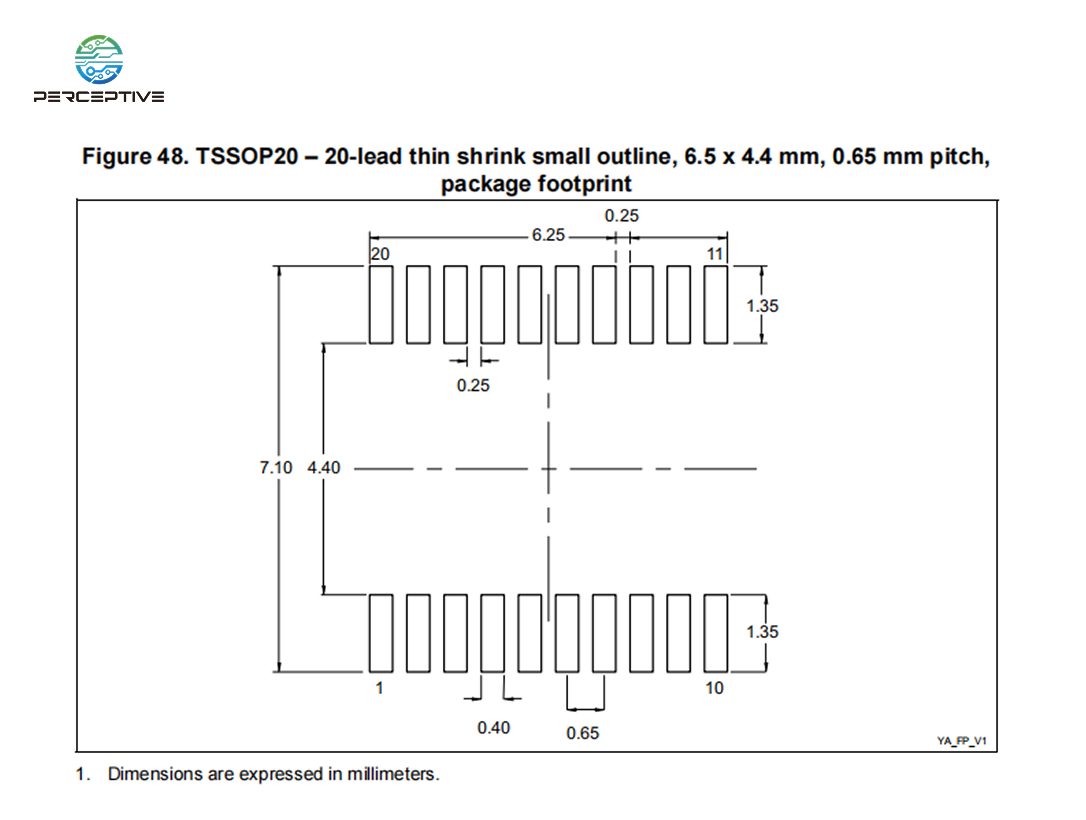

Package Information of ST STM8S003F3P6TR
The STM8S003F3P6TR uses a 20-pin TSSOP package with a 0.65 mm pitch. The STM8S003F3 family is also available in UFQFPN20 and other package variants, allowing designers to select a package according to board-space and I/O requirements.
For the P6TR ordering code, P identifies the TSSOP package, 6 specifies the -40°C to +85°C temperature range, and TR indicates tape-and-reel packaging.
Why Source STM8S003F3P6TR from Perceptive Components?
Choosing Perceptive Components for your STM8S003F3P6TR requirements provides flexible sourcing support for production and urgent procurement:
Inventory Stability: 5K pcs in stock with Date Code 26+, supporting both immediate requirements and ongoing production demand.
Quality Assurance: Components are subject to inspection and verification procedures to help ensure genuine, reliable parts.
Global Logistics: We provide fast, reliable global shipping solutions for customers worldwide.
Competitive Pricing: Our global sourcing network enables competitive pricing for STM8S003F3P6TR while maintaining product authenticity and supply reliability.
Alternatives for STM8S003F3P6TR
If the STM8S003F3P6TR becomes unavailable or lead times increase, customers may consider related STM8S003F3 family options:
STM8S003F3U6TR: A related 20-pin STM8S003F3 variant using a compact UFQFPN20 3 × 3 mm package. It retains the 8 KB Flash, 1 KB RAM, 128-byte EEPROM, and 16 MHz STM8 architecture, but the package footprint and PCB layout are different.
STM8S003K3T6TR: A 32-pin STM8S003K3 variant offering up to 28 GPIOs, compared with 16 GPIOs on the STM8S003F3, making it relevant where additional I/O is required. It uses an LQFP32 package, so PCB and pinout compatibility must be verified.
If you are facing lead time issues, contact Perceptive Components for recommended alternative solutions based on your package, pinout, and application requirements.
Secure Your Supply Chain Today
Don't let component shortages or extended lead times impact your production schedule. At Perceptive Components, our dedicated sourcing specialists are ready to support your STM8S003F3P6TR requirements with reliable supply solutions, competitive pricing, and global delivery capabilities.
Request a Quote for STM8S003F3P6TR Today!
Receive a customized quotation based on your required quantity, project timeline, and sourcing needs. With 5K pcs in stock and Date Code 26+, we can support both immediate and ongoing procurement requirements.
Download Full Technical STM8S003F3P6TR Datasheet (PDF)
Access the technical documentation for detailed electrical characteristics, performance specifications, package information, pin configuration, and application guidance.
