The TDK InvenSense ICM-42688-P is a high-performance 6-axis MEMS MotionTracking sensor that integrates a 3-axis gyroscope and a 3-axis accelerometer into a compact 14-pin LGA package. Designed for advanced motion sensing applications, the device provides high-precision motion tracking, low-power operation, and flexible connectivity for compact electronic systems.
The ICM-42688-P combines advanced MEMS sensing technology with integrated motion processing capabilities. It features a configurable host interface supporting I3C, I2C, and SPI communication, a 2 KB FIFO buffer, programmable interrupts, wake-on-motion support, and the integrated APEX motion processing engine for functions including gesture recognition, activity classification, pedometer, tilt detection, and motion detection.
The TDK InvenSense ICM-42688-P is currently In Stock and ready for immediate shipping at Perceptive Components. With 3K pcs currently available and date code 26+, Perceptive Components provides reliable supply support for OEMs, contract manufacturers, and global electronics procurement teams. As a trusted independent electronic components distributor, we focus on providing 100% authentic components, competitive sourcing solutions, and rapid global delivery to help customers maintain production continuity and reduce supply chain risks.
Part Number: ICM-42688-P
Manufacturer: TDK InvenSense
Stock Availability: 3k pcs
Date Code: 26+
Package Type: 14-Pin LGA (2.5 × 3.0 × 0.91 mm)
Packaging: Tape & Reel
Key Technical Specifications of TDK ICM-42688-P
| Parameter | Specification |
| Product Type | 6-Axis MEMS MotionTracking Device |
| Sensor Integration | 3-Axis Gyroscope + 3-Axis Accelerometer |
| Gyroscope Full-Scale Range | ±15.625 / ±31.25 / ±62.5 / ±125 / ±250 / ±500 / ±1000 / ±2000 dps |
| Accelerometer Full-Scale Range | ±2g / ±4g / ±8g / ±16g |
| Gyroscope Noise | 2.8 mdps/√Hz |
| Accelerometer Noise | 70 µg/√Hz |
| FIFO Memory | 2 KB |
| Data Resolution | Up to 20-bit FIFO data format support |
| Communication Interface | I3C, I2C, SPI |
| SPI Interface Speed | Up to 24 MHz |
| I2C Interface Speed | Up to 1 MHz |
| Supply Voltage (VDD) | 1.71V to 3.6V |
| Operating Temperature | -40°C to +85°C |
| Package | 2.5 × 3 × 0.91 mm 14-Pin LGA |
| RoHS/REACH Status | RoHS and Green Compliant |
| Moisture Sensitivity Level (MSL) | MSL 3 (168 hours) |
| Packaging | Tape & Reel |
The ICM-42688-P provides high-performance motion sensing through integrated MEMS gyroscope and accelerometer technology. The device supports programmable digital filters, an embedded temperature sensor, external clock input, and multiple power modes for optimized system performance.
Applications of ICM-42688-P
The TDK InvenSense ICM-42688-P is optimized for advanced motion sensing applications requiring high accuracy, low power consumption, compact design, and reliable motion tracking performance. Typical applications include:
AR/VR Controllers & Head Mounted Displays (HMDs): The integrated 6-axis motion sensing capability and advanced motion processing features enable accurate orientation tracking, gesture recognition, and immersive motion control for AR/VR devices.
Wearable Devices & Sports Applications: With low-power operation, high-resolution sensing, and a compact LGA package, the ICM-42688-P supports smart wearables, fitness trackers, and portable devices requiring efficient motion monitoring.
Robotics & Motion Control Systems: The high-performance gyroscope and accelerometer integration provides precise motion detection and stabilization capabilities for robotics, automation equipment, and embedded motion control platforms.
IoT & Embedded Sensing Applications: Supporting I3C, I2C, and SPI interfaces, the ICM-42688-P enables flexible integration into IoT devices and embedded systems requiring reliable motion detection and activity recognition.

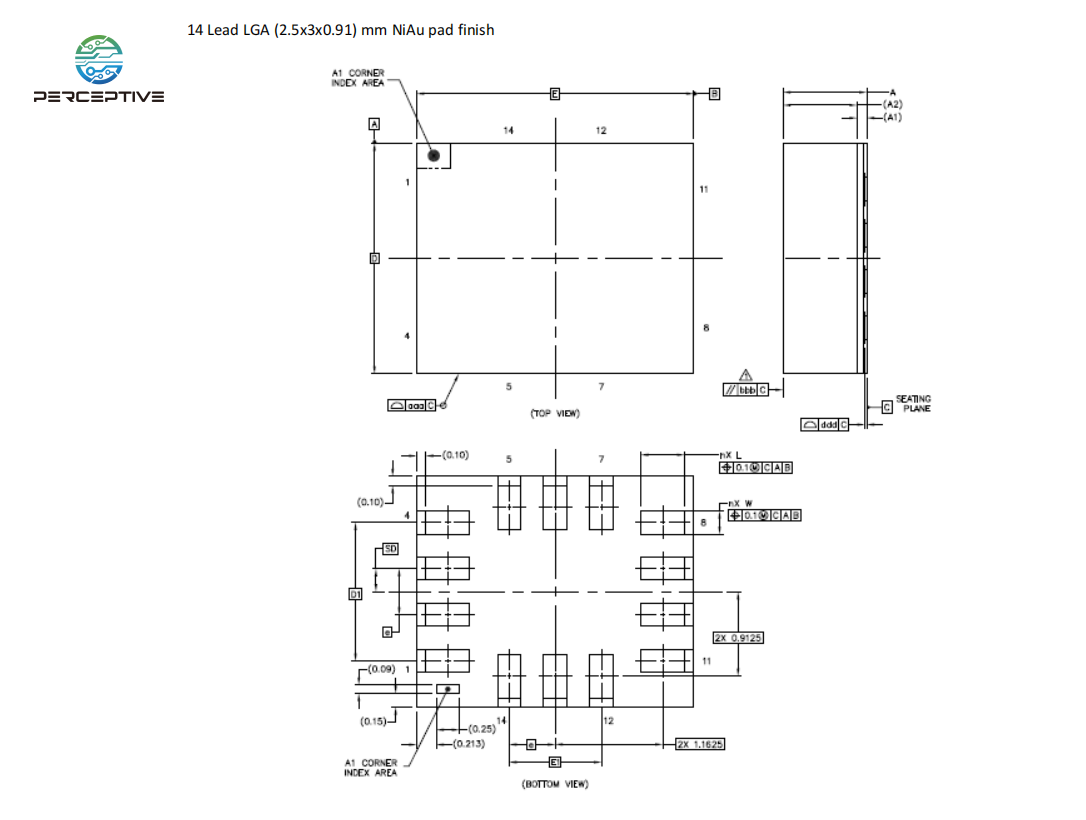

Package Information of TDK ICM-42688-P
The ICM-42688-P is supplied in a compact 14-pin LGA package with dimensions of 2.5 mm × 3.0 mm × 0.91 mm.
The small package footprint makes it suitable for space-constrained applications including portable electronics, wearable devices, and embedded motion sensing platforms.
Why Source ICM-42688-P from Perceptive Components?
Inventory Stability: Perceptive Components maintains extensive inventory for both active-market components and difficult-to-source parts. The available 3K pcs of TDK InvenSense ICM-42688-P (Date Code 26+) provides customers with immediate supply access and helps reduce procurement risks.
Quality Assurance: Every component undergoes strict inspection and verification procedures to ensure product authenticity, packaging consistency, and reliable performance for critical electronic applications.
Global Logistics: With established supply channels and international shipping experience, Perceptive Components provides fast and reliable delivery solutions for customers worldwide, supporting efficient semiconductor procurement.
Competitive Pricing: Through direct sourcing channels and strong supplier relationships, Perceptive Components delivers competitive pricing solutions for TDK InvenSense MEMS motion sensor components while maintaining supply reliability.
Alternatives for TDK ICM-42688-P
For customers looking for compatible motion sensing solutions, the following TDK InvenSense products may be considered depending on design requirements:
ICM-42686-P: Related 6-axis MEMS MotionTracking sensor from the same TDK InvenSense family, suitable for applications requiring high-performance motion sensing and compact designs.
ICM-42605: Related 6-axis motion sensor featuring integrated gyroscope and accelerometer functionality, providing a flexible solution for embedded systems, wearables, and IoT applications requiring reliable motion tracking performance.
If you are facing lead time issues, contact Perceptive Components for recommended alternative solutions based on your application requirements.
Secure Your Supply Chain Today
Don't let component shortages impact your production schedule. At Perceptive Components, our sourcing specialists are ready to support your TDK InvenSense ICM-42688-P requirements with reliable supply solutions, competitive pricing, and global delivery capabilities.
Request a Quote for TDK ICM-42688-P Today!
Receive a customized quotation based on your required quantity, project timeline, and sourcing requirements. Our team provides flexible supply solutions for OEMs, EMS providers, and electronic manufacturers worldwide.
Download Full Technical TDK ICM-42688-P Datasheet (PDF)
Access detailed technical specifications, electrical characteristics, package information, and application details for the TDK InvenSense ICM-42688-P 6-Axis MEMS MotionTracking Sensor.
