Analog Devices OP2177ARZ Datasheet

The Analog Devices OP2177ARZ is a high-precision dual operational amplifier designed for applications requiring low offset voltage, low input bias current, low noise, and stable operation across a wide temperature range. As part of the OPx177 family, the OP2177ARZ combines precision analog performance with low power consumption, making it suitable for instrumentation, sensor signal conditioning, optical and wireless control circuits, precision filters, and measurement systems. The device operates from dual supplies ranging from ±2.5 V to ±15 V and is unity-gain stable.

The OP2177ARZ is currently In Stock at Perceptive Components, with 4K pcs available and Date Code 26+, ready to support immediate sourcing requirements. As an independent electronic components distributor, Perceptive Components provides genuine components, supply-chain support, competitive sourcing, and fast global delivery for customers in North America, Europe, and worldwide.

Part Number: OP2177ARZ

Manufacturer: Analog Devices

Stock: 4K pcs

Date Code: 26+

Package: 8-Lead SOIC_N (R-8)

Operating Temperature: −40°C to +125°C

Key Technical Specifications of ADI OP2177ARZ

The core electrical specifications are based on the Analog Devices OP2177 datasheet, including offset voltage, input bias current, CMRR, PSRR, supply current, slew rate, bandwidth, and noise performance. The manufacturer ordering guide lists OP2177ARZ, OP2177ARZ-REEL, and OP2177ARZ-REEL7 in the 8-lead SOIC_N R-8 package.

Applications of OP2177ARZ

The OP2177ARZ is suitable for precision analog circuits where low offset, low noise, and low input bias current are important. Typical applications include:

• Instrumentation and Measurement: Suitable for high-accuracy measurement circuits, signal amplification, and precision analog front ends.

• Sensor Signal Conditioning: Supports thermocouples, RTDs, strain bridges, and other low-level sensor interfaces requiring stable and accurate amplification.

• Optical and Wireless Control: Can be used for level detection, voltage and current level setting, and control circuits in optical and wireless transmission equipment.

• Precision Filters: Its low noise and stable operation make it suitable for active filtering and other precision analog signal-processing circuits.

• Current and Voltage Measurement: Useful for shunt current measurements and precision diode power measurement applications where low offset and high CMRR are important.

Information of ADI OP2177ARZ

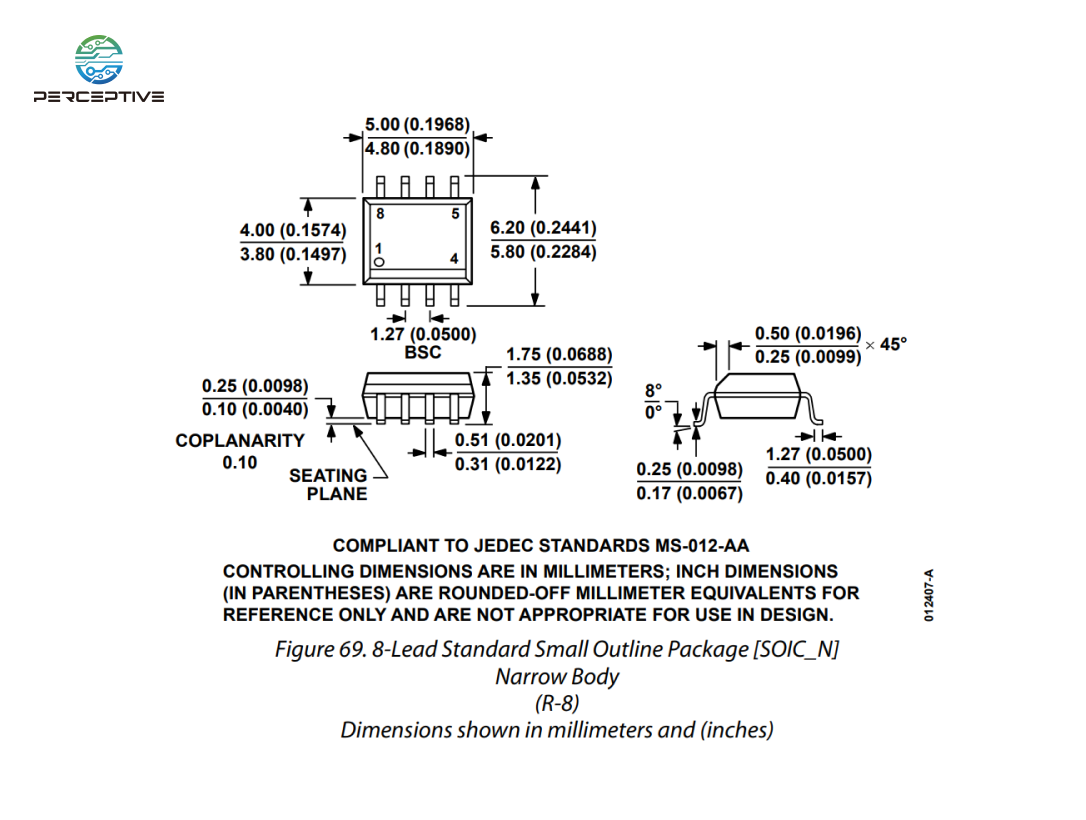

The OP2177ARZ uses an 8-lead SOIC_N package (R-8). The OP2177 dual-amplifier configuration provides two independent amplifier channels in a compact surface-mount package. The datasheet also specifies a junction-to-ambient thermal resistance of 158°C/W for the 8-lead SOIC_N package.

OP2177 Series

Why Source OP2177ARZ from Perceptive Components?

Choosing Perceptive Components as your sourcing partner for the OP2177ARZ helps reduce supply risks while supporting both production and urgent procurement requirements:

• Inventory Stability: We currently have 4K pcs of OP2177ARZ in stock with Date Code 26+, supporting immediate and ongoing purchasing requirements.

• Quality Assurance: Components undergo rigorous inspection and verification processes to help ensure genuine and reliable parts for precision analog applications.

• Global Logistics: Established supply channels and international shipping capabilities enable fast and reliable delivery to customers worldwide.

• Competitive Pricing: Through global sourcing channels and established supplier relationships, we provide competitive pricing for OP2177ARZ while maintaining component authenticity and supply reliability.

Alternatives for OP2177ARZ

If the OP2177ARZ becomes unavailable or lead times increase, customers may consider related OPx177 family options depending on channel count and package requirements:

• OP2177ARMZ: A closely related OP2177 variant using the same dual-amplifier architecture in an 8-lead MSOP (RM-8) package. It may be considered when an MSOP package is preferred, subject to PCB and mechanical compatibility.

• OP4177ARZ: A related quad operational amplifier from the same OPx177 family, housed in a 14-lead SOIC_N R-14 package. It may be suitable for designs requiring four precision amplifier channels, although it is not a pin-for-pin replacement for OP2177ARZ.

If you are facing lead time issues, contact Perceptive Components for recommended alternative solutions based on your package, pinout, electrical specifications, and application requirements.

Secure Your Supply Chain Today

Don't let component shortages or extended lead times affect your production schedule. Perceptive Components is ready to support your OP2177ARZ requirements with available inventory, competitive pricing, component verification, and global delivery capabilities.

• Request a Quote for OP2177ARZ Today!

  Receive a customized quotation based on your required quantity, project timeline, and sourcing needs. With 4K pcs in stock and Date Code 26+, we can support both immediate and ongoing procurement requirements.

• Download the Full Technical OP2177ARZ Datasheet (PDF)

  Review detailed electrical characteristics, application information, package specifications, pin configuration, and operating conditions directly from the manufacturer documentation.
