The LTC5541 is a high-performance, high-dynamic-range, high-gain downconverting mixer designed by Linear Technology (now part of Analog Devices). Optimized for 1.3GHz to 2.3GHz RF applications, this device is a critical component for modern wireless infrastructure, including LTE, W-CDMA, TD-SCDMA, UMTS, and GSM1800 systems, as well as point-to-point microwave links.
The LTC5541IUH#PBF and LTC5541IUH#TRPBF are currently In Stock and ready for immediate shipping at Perceptive Components. As a leading independent distributor, we ensure 100% authenticity for all our components through rigorous quality control processes.To support your production requirements with precision, we maintain specific batch availability: the LTC5541IUH#TRPBF is available in the 25+ batch, while the LTC5541IUH#PBF is available in the 26+ batch. Our specialized testing capabilities ensure that these components meet strict performance standards before they leave our warehouse.
Manufacturer: Analog Devices Inc.
Package: 20-Lead Plastic QFN (5mm x 5mm)
Part Number: LTC5541IUH#TRPBF
Stock: 3,000 pcs
Date Code: 25+
Part Number: LTC5541IUH#PBF
Stock: 2,000 pcs
Date Code: 26+
Key Technical Specifications of LTC5541
| Parameter | Specification |
| RF Input Frequency | 1.3GHz to 2.3GHz |
| LO Input Frequency | 1.4GHz to 2.0GHz |
| Conversion Gain | 7.8dB (at 1950MHz) |
| IIP3 | 26.4dBm (at 1950MHz) |
| Noise Figure | 9.6dB (at 1950MHz) |
| Supply Voltage | 3.3V (IF amplifier can support 5V) |
| Package | 20-Lead (5mm x 5mm) QFN |
| MSL | Level 1 (or as per current factory seal) |
| RoHS/REACH Status | Compliant (Lead-Free Finish) |
| Packaging | Tape & Reel / Tube |
Applications of the LTC5541
The LTC5541 is engineered to enable high-selectivity receiver designs while minimizing total
solution cost and board space. Key applications include:
Wireless Infrastructure Receivers: Ideal for high-density LTE, W-CDMA, TD-SCDMA, and GSM1800
base stations.
Point-To-Point Microwave Links: Providing robust performance in challenging RF environments.
High-Selectivity Receivers: Its high conversion gain and dynamic range allow for the use of lossy IF filters, simplifying complex
receiver designs.
Package of LTC5541

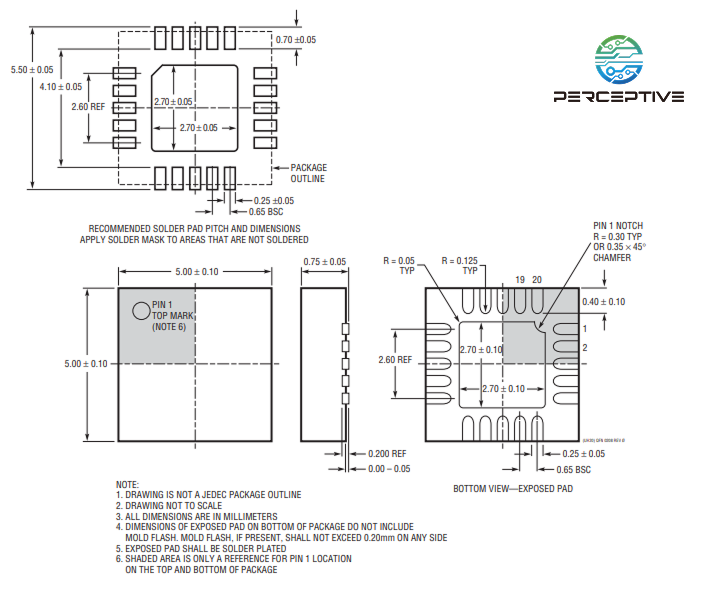

The LTC5541 is housed in a compact, low-profile 20-lead 5mm*5mm QFN (Quad Flat No-lead) package, optimized for high-density PCB integration in space-constrained RF designs.The device features an exposed metal pad on the underside, which provides a critical low-impedance path for both thermal dissipation and RF grounding. This high-efficiency thermal design ensures stable performance under high-gain operation. The package is RoHS-compliant and is engineered to maintain reliability in industrial temperature ranges, adhering to standard moisture sensitivity level (MSL) protocols for surface-mount technology.
