Program introduction:
RK3288 Smart Terminal Edge Computing Gateway is an edge computing box developed based on RK3288. The CPU uses RK3288 Quad-core Cortex-A17 with a main frequency of 1.8GHZ. Adopt 10.1-inch capacitive touch screen. Widely used in facial recognition payment, smart terminals, new retail machines, commercial display advertising machines and other fields.
Universal machine design, easy to use and maintenance-free, multiple network ports and wireless interconnection:
STANDARD GATEWAY PRODUCT
Standard Gateway Products
IMMEDIATE NETWORKING
Immediate networking
PLUG AND PLAYplug and play
IMPORT AIINTELLIGENCE
Import AI intelligence
Applied to the field of device interconnection and local computing:
Smart Factory System Integrator
Industrial Internet of Things System Integrator
New retail system integrator

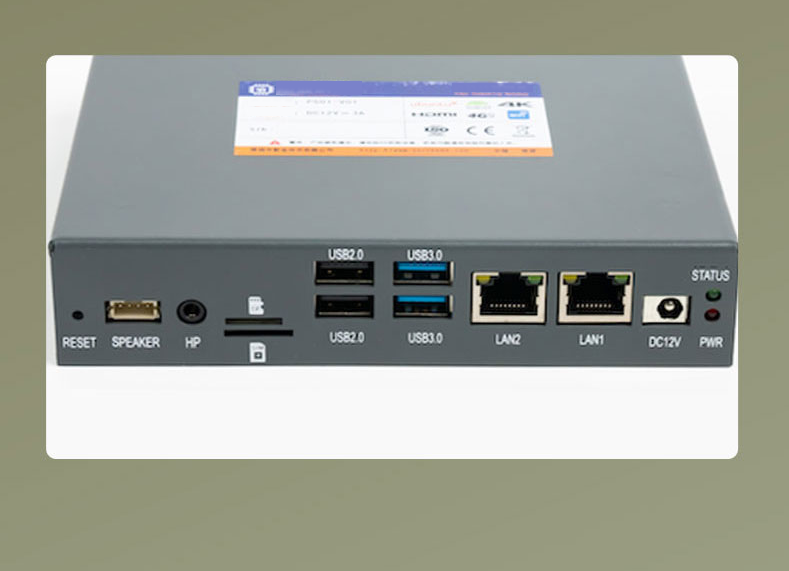

Rich interfaces support multiple devices:
· Standard Gateway Size
· easy to install
· Easy device interconnection
· maintenance free
CPU:
RK3288 Quad-core Cortex-A171.8GHZ
DDR:
DDR 2GB
EMMC:
Standard 16GB8/32GB optional
Show:
1*HDMI, 10.1 inch capacitive touch screen
USB:
2*USB2.0 (one of which is OTG)
communication:
Support 4G full Netcom
WIFI:
WiFi+BT4.0 shared module
Ethernet:
1*LAN/WAN10/100Mbps adaptive Ethernet port
Performance parameters:
Industry Category : Industrial Electronics
Delivery form: complete machine
Performance parameters: CPU RK3288 Quad-core Cortex-A17 1.8GHZ DDR 2GB EMMC Standard 16GB, 8/32GB optional Display 1*HDMI, 10.1-inch capacitive touch screen USB 2*USB 2.0 (one of which is OTG) Support 4G full Netcom ;Wifi WiFi+BT4.0 shared module;Ethernet 1*LAN/WAN 10/100Mbps adaptive Ethernet port
Application scenarios: Face payment, smart terminal, new retail machine, commercial display advertising machine
