Introduction:
Intelligent energy-saving remote air conditioner controller AIRSOCKET is a new type of wall-mounted air conditioner remote controller developed by us for the purpose of energy saving, management, and remote centralized control. It is suitable for office, dormitory, hotel and other wall-mounted air conditioner applications. Air conditioner universal code library module, infrared learning module, control module, remote communication module, execution strategy module and other functional modules.
* The device adopts high-definition customized VA display to display data in real time, and touch buttons to provide human-computer interaction.
* The device can automatically match the infrared remote control command of the air conditioner with one button, which is suitable for 99% of the split air conditioners on the market. For special air-conditioning equipment, it supports self-learning air-conditioning remote control key codes. * The air conditioner controlled by the device does not need to be modified or disassembled (does not affect the original warranty service of the air conditioner), making the remote control of the air conditioner more intelligent and simpler.
* Anti-dismantle design to avoid the risk of skipping the use of equipment. * Mobile phone remote management, convenient and fast.
Features:
1. The device supports the collection of data such as air conditioner power consumption, time, temperature, switch records, usage data, etc., and supports historical data query.
2. The device has a schedule setting function, which can be set to start at a fixed time, turn off at a fixed time, lock, unlock, etc. according to the needs. Each device supports setting 5 schedules, and the setting parameters are stored locally, and the system can operate normally even when the network is disconnected.
3. The device has a limited strategy, which can limit the air-conditioning temperature, daily power consumption, daily duration, unmanned shutdown (optional) and other functions, and set the localized storage of parameters, and the system can operate normally even when the network is disconnected.
4. The device has the function of remote communication, and can control the switch, mode, temperature, wind speed, etc. of the air conditioner in real time through the background software or mobile APP.
5. The equipment has a built-in protection program, and the control of the air conditioner is carried out through infrared. During the working period of the air conditioner, the power of the air conditioner will not be cut off, which ensures the safe use of the air conditioner.
6. The equipment uses a high-power infrared emitting chip, which improves the anti-interference ability and reduces the requirements for the installation environment.
Function description Device screen display description:
After the device is powered on, the screen will display the relevant information of the device in rotation.
1. The contents of the wheel display are: relay status (power on/off), channel, address, voltage, current, temperature, time
2. The device has three touch buttons, which are "OK", "∧" and "∨". The up and down keys can turn the screen to view the device channel, device address, master station IP, master station port and other parameters. The combination of the three buttons can change the device Related parameters. Display example: Voltage 236V
3. Please refer to the software instruction manual for other function descriptions. Copying is strictly prohibited

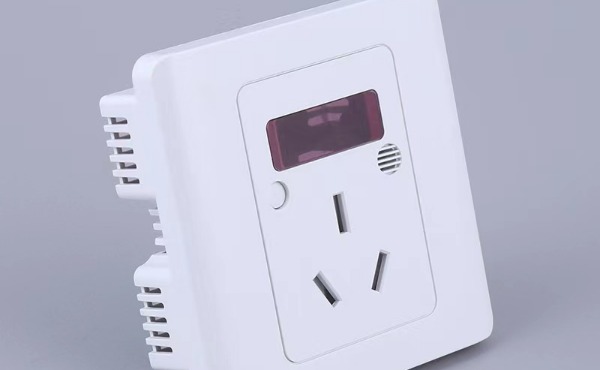

Air conditioner energy saving controller-AIRSOCKET
Installation diagram of air conditioner centralized control expert Hang-up air conditioner installation: just replace the previous traditional air conditioner socket with this product
