The LTM8047MPY is a high-performance, isolated flyback μModule DC/DC converter designed to provide robust and reliable power in demanding environments. Manufactured by Linear Technology (now part of Analog Devices), this device integrates a switching controller, power switches, and transformer into a single, compact surface-mount package.
The LTM8047MPY is currently In Stock and ready for immediate shipping at Perceptive Components. We have a dedicated inventory of 2,000 units with date code 22+, ensuring high-quality, reliable parts for your critical projects. As a leading independent distributor, we ensure 100% authenticity and rapid global delivery.
Part Number: LTM8047MPY
Manufacturer: Analog Devices / Linear Technology
Stock: 2k pcs
Date Code: 22+
Package: BGA Package 45-Lead (11.25mm × 9.00mm × 4.92mm)
Key Technical Specifications of ADI LTM8047MPY
The LTM8047MPY is engineered for high-temperature and mission-critical applications. Below are the essential technical parameters:
| Parameter | Specification |
| Product Type | Isolated Flyback µModule DC/DC Converter |
| Input Voltage Range | 3.1V to 32V |
| Output Voltage Range | 2.5V to 12V (Adjustable) |
| Maximum Output Current | Up to 440mA(VOUT = 2.5V) |
| Isolation Voltage | 725VDC |
| Control Mode | Current Mode Control |
| Package | 45-Lead BGA Package (11.25mm × 9.00mm × 4.92mm) |
| Mounting Type | Surface Mount |
| Operating Temperature Range | -55°C to +125°C |
| Moisture Sensitivity Level (MSL) | MSL 3 |
| RoHS Status | RoHS Compliant |
| REACH Status | Compliant |
| Terminal Finish | SAC305 (RoHS compliant) for LTM8047MPY#PBF; SnPb finish for LTM8047MPY |
| Packaging | Packaging: Tray / Bulk (Contact for availability) |
Applications of LTM8047MPY
Due to its high level of integration and galvanic isolation, the LTM8047MPY is widely used in:
Industrial Sensors: Providing isolated power for sensitive sensing circuitry.
Industrial Switches: Ensuring reliable power management in automated control environments.
Ground Loop Mitigation: Effectively isolating power rails to prevent noise and ground loops in complex systems.

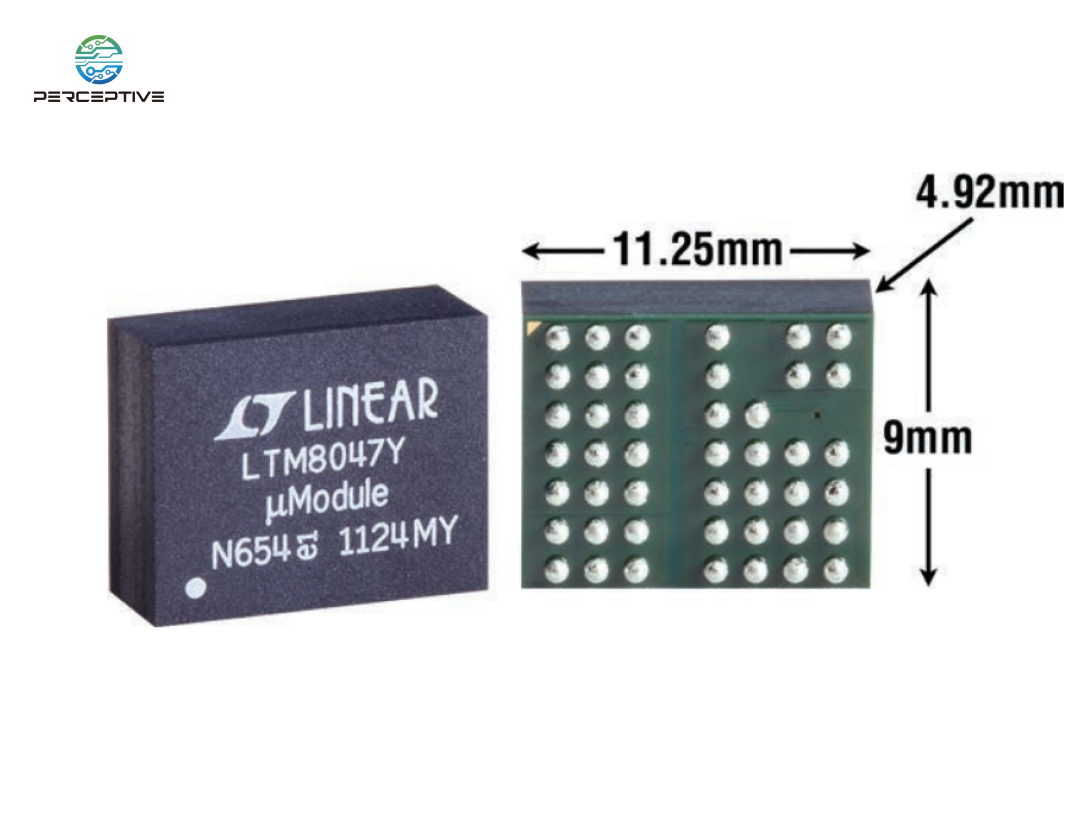

Package Information of ADI LTM8047MPY
The LTM8047MPY is housed in a thermally enhanced, compact 11.25mm × 9.00mm × 4.92mm over-molded BGA package. This design is optimized for automated assembly using standard surface mount equipment, providing a space-saving solution for dense PCB layouts while maintaining excellent thermal performance.
LTM8047 Series
| LTM8047EY#PBF | LTM8047IY#PBF |
| LTM8047MPY#PBF | LTM8047MPY |
Why Source LTM8047MPY from Perceptive Components?
When sourcing mission-critical components like the LTM8047MPY, choosing the right partner is as important as the component itself. At Perceptive Components, we offer:
Inventory Stability: We hold massive stock, including hard-to-find and legacy components, ensuring your production lines keep moving.
Quality Assurance: All parts undergo rigorous testing and inspection processes in our state-of-the-art facilities to guarantee 100% genuine components.
Global Logistics: Our advanced logistics network provides fast, reliable, and secure global shipping solutions for customers worldwide.
Competitive Pricing: Through direct sourcing and efficient supply chain management, we provide the best market pricing for the LTM8047MPY.
Alternatives for LTM8047MPY
If LTM8047MPY is unavailable or facing extended lead times, customers may consider the following alternatives:
LTM8048MPY：Similar isolated DC/DC µModule regulator with an integrated LDO post regulator for lower-noise output applications.
LTM8031：Ultralow noise EMC µModule regulator with a wide input voltage range for industrial power applications.
If you are facing lead time issues, contact Perceptive Components for recommended drop-in replacements.
Secure Your Supply Chain Today
Don't let supply chain bottlenecks delay your product launch. At Perceptive Components, our dedicated procurement specialists are ready to assist with your specific volume requirements and technical needs.
Request a Quote for LTM8047MPY Today!
Click here to receive a customized price offer based on your specific quantity and delivery timeline.
Download Full Technical LTM8047MPY Datasheet (PDF)
Click the link above to access the official datasheet, including detailed PCB layout recommendations, performance curves, and complete electrical characteristics.
