Analog Devices SDC1740 411 Datasheet

The SDC1740-411 is a high-performance, 14-bit hybrid continuous tracking synchro-to-digital converter. Manufactured using a proprietary BiMOS II process, it flawlessly combines the low power consumption of CMOS logic with the high-accuracy linear precision of bipolar circuitry on a single chip. Featuring internal isolating microtransformers, the device offers true electrical isolation for signal and reference inputs, drastically reducing noise and enhancing systemic reliability in complex layouts.

The SDC1740-411 is currently In Stock and ready for immediate shipping at Perceptive Components. As a leading independent distributor, we ensure 100% authenticity and rapid global delivery. Whether you are managing an urgent line-down situation or fulfilling a long-term defense contract, our certified supply chain guarantees factory-grade components with fully traceable documentation.

Part Number: SDC1740-411

 Manufacturer: Analog Devices Inc.

 Available Stock: 3,000 pcs

 Warehouse Location: Shenzhen, China

 Package: DIP32

 Date Code: 2024+

Key Technical Specifications of ADI SDC1740-411

To assist component engineering teams in verifying compatibility, the following table encapsulates the primary electro-mechanical parameters of the SDC1740-411:

Applications of SDC1740-411

The military-grade temperature screening (-55°C to +125°C)and ratiometric conversion architecturerender the SDC1740-411 ideal for mission-critical mission profiles:

• Flight Instrumentation & Avionic Systems: Provides continuous tracking of flight control surfaces, pilot navigation indicators, and synchro-driven cockpit displays.

• Military Servo & Artillery Fire Control Systems: Essential for precise radar positioning, gun turret aiming mechanisms, and military targeting matrices requiring fast dynamic settling times.

• Antenna Monitoring & Satellite Tracking: Coordinates conversion and axis transformation for satellite dish positioning arrays.

• Heavy Industrial Automation & CNC Machine Tooling: Utilized in high-reliability process control loops and robotic articulation arms requiring absolute angular feedback.

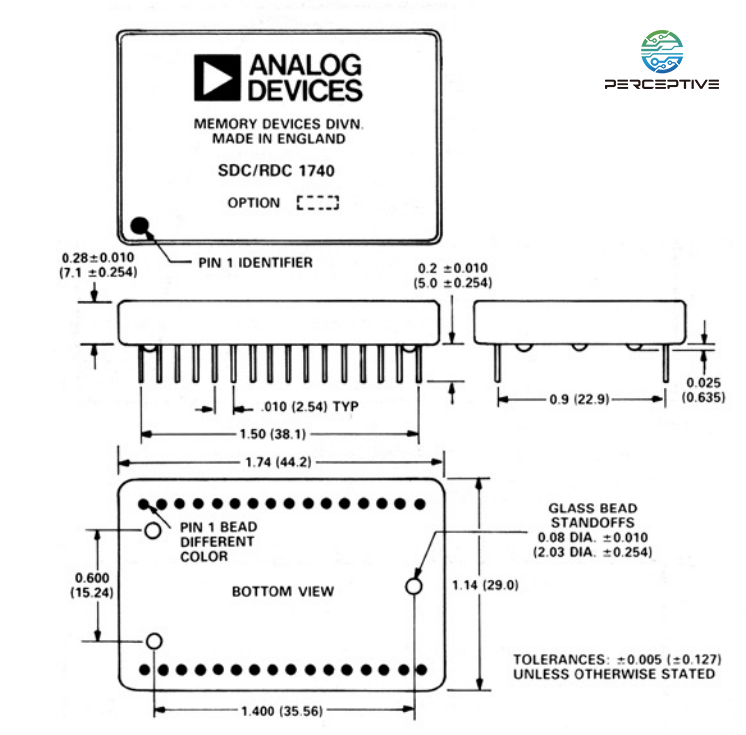

Package of SDC1740-411

The component is house-packaged in a low-profile, high-thermal-efficiency 32-pin welded metal container measuring $1.74 \times 1.14 \times 0.28$ inches.

The hermetic encapsulation prevents moisture ingress under severe atmospheric cycling, satisfying environmental testing protocols like constant acceleration (up to 5000G) and thermal shock profiles.

Why Source SDC1740-411 from Perceptive Components?

Navigating the semiconductor broker market requires a partner that prioritizes asset protection and strict logistical timelines. Sourcing your Analog Devices parts through Perceptive Components guarantees tangible competitive advantages:

• Inventory Stability: We maintain a massive on-site stock of current, active, and hard-to-find legacy components. Our continuous buffer inventory eliminates production bottlenecks caused by unexpected manufacturer lead-time shifts.

• Quality Assurance: Counterfeit avoidance is institutionalized at Perceptive Components. Every batch of SDC1740-411 undergoes strict incoming inspection, including standard visual microscopy, marking permanence checks, and high-reliability screening verification.

• Global Logistics: Operating through consolidated distribution hubs, we facilitate rapid same-day or next-day customs-cleared shipping directly to procurement hubs across North America, Europe, and Asia.

• Competitive Pricing: Leveraging direct sourcing channels and an expansive global network, we bypass unnecessary middle-tier markup layers to deliver the best market pricing for the SDC1740-411.

Alternatives & Drop-In Replacements of SDC1740-411

If your project is subject to immediate engineering modifications or facing severe supply constraints, consider these adjacent models from the same product family:

1. SDC1740-411B: The high-reliability, fully screened military variant which undergoes additional preseal burn-in (64 hours at $+125^{\circ}C$) and Group A final electrical validation across extreme temperature bounds.

2. SDC1742 Series: If your application can accommodate a slightly adjusted accuracy profile ($\pm8.5$ arc minutes at 12-bit resolution), the SDC1742 variants serve as excellent fallback choices to maintain structural continuity.

If you are facing lead time issues, contact Perceptive Components for recommended drop-in replacements.

Secure Your Supply Chain Today

Don't let legacy component shortages stall your assembly lines or compromise high-reliability defense frameworks.

• Request a Quote for SDC1740-411 Today! Submit your RFQ details through our secure digital form, and our dedicated account managers will issue a formal proposal within 24 hours.

• Download Full ADI SDC1740-411 PDF Datasheet  to review complete electrical schematics and pin configurations.
