The ADUM1250ARZ by Analog Devices is a high-performance, hot-swappable digital isolator featuring nonlatching, bidirectional communication channels that are fully compatible with I²C interfaces. Utilizing Analog Devices' proprietary iCoupler chip-scale transformer technology, this component replaces traditional, bulky optocouplers by integrating magnetic isolation channels directly with semiconductor circuitry. This eliminates the need to split I²C signals into separate transmit and receive signals, enabling a complete, compact, and highly reliable isolated I²C design. Equipped with advanced hot-swap circuitry, the ADUM1250ARZ prevents data glitching when unpowered cards are inserted onto active buses, making it an essential component for high-availability systems.

If you are looking to secure your supply chain or want to buy ADUM1250ARZ online, Perceptive Components provides seamless access to genuine factory traces and reliable lead times.

Part Number: ADUM1250ARZ

Manufacturer: Analog Devices Inc.

Stock: 10,000 pcs

Date Code: 2022+

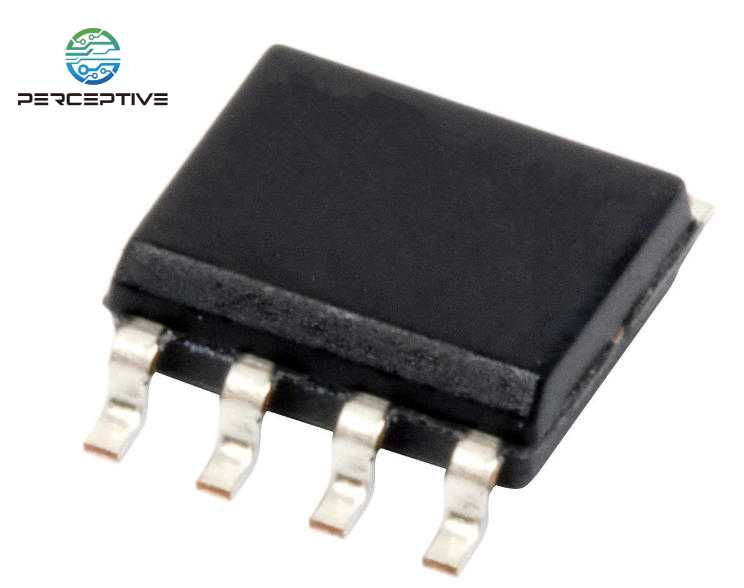

Package: SOIC-8

Key Specifications of ADUM1250ARZ

The table below highlights the critical electrical, physical, and compliance specifications of the ADUM1250ARZ:

Applications of ADUM1250ARZ

The bidirectional communication capability and robust electrical isolation of the ADUM1250ARZ make it a versatile choice across rigorous industrial and automotive sectors. Primary applications include:

• Isolated I²C, SMBus, or PMBus Interfaces: Safely bridging control logic boards with high-voltage power components.

• Power Supply Units (PSUs): Enhancing feedback loops and digital control stability in industrial switch-mode power supplies.

• Hybrid Electric Vehicle (HEV) Battery Management: Delivering signal isolation in critical battery monitoring and management systems.

• Power over Ethernet (PoE): Assuring network system safety and regulatory alignment in data communication setups.

• Enterprise Networking and Multi-level I²C Interfaces: Streamlining complex bus routings in scalable server architectures.

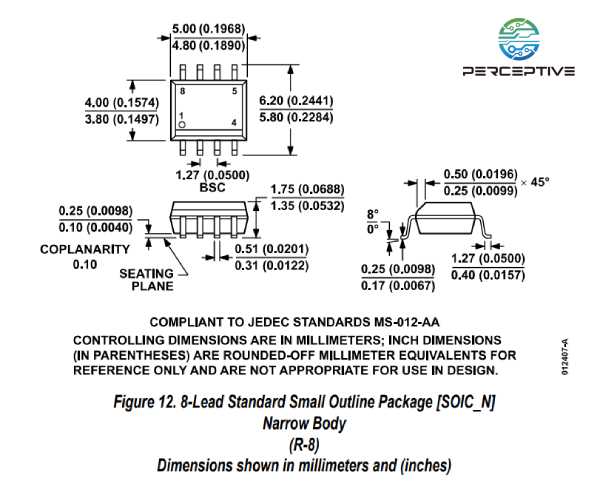

Package and Pin Configuration of ADUM1250ARZ

The ADUM1250ARZ is housed in an industry-standard, space-saving 8-lead narrow-body SOIC package. This standard form factor makes it highly compatible with automated surface-mount technology (SMT) assembly lines.

Note: Pin 1 through Pin 4 connect to the Side 1 reference ground (GND1), while Pin 5 through Pin 8 connect to the isolated Side 2 ground (GND2), providing physical galvanic isolation across the barrier.

ADUM1250 / ADUM1251 Series

Why Source ADUM1250ARZ from Perceptive Components?

Navigating the global semiconductor supply chain requires a component partner that blends market agility with strict quality baselines. Perceptive Components serves as a premier ADUM1250ARZ distributor, offering B2B buyers clear strategic advantages:

• Inventory Stability: We hold massive stock allocations for highly sought-after active parts as well as end-of-life (EOL) or hard-to-find components. Our predictive inventory management mitigates factory allocation risks.

• Quality Assurance: Counterfeits present severe risks to electronic manufacturing. Every single Analog Devices batch undergoes stringent, multi-stage testing and visual inspection protocols at our certified facilities to guarantee 100% original parts.

• Global Logistics Network: Time-to-market is critical. With specialized hubs, we provide lightning-fast, secure shipping across North America, Europe, and Asia, minimizing your factory's production downtime.

• Competitive Pricing: By leveraging direct sourcing networks and strong industry relationships, we offer the optimal market-driven ADUM1250ARZ price structures for bulk, contract, and spot-buy requirements.

Alternatives & Drop-In Replacements of ADI ADUM1250ARZ

If you are currently facing extended factory lead times or allocation constraints on the primary component, consider these alternative paths:

• ADUM1251ARZ: For applications that do not require a bidirectional clock line, the ADUM1251 offers one bidirectional data channel and one unidirectional clock channel in the same footprint.

• ADUM1250SRZ / ADUM1250WSRZ: These variations deliver identical logic functionality but are qualified for extended automotive and high-temperature profiles up to +125°C.

If you are facing lead time issues, contact Perceptive Components for recommended drop-in replacements tailored precisely to your schematic.

Buy ADUM1250ARZ Online Now

Looking for the Analog Devices ADUM1250ARZ with zero lead time? Perceptive Components has verified, ready-to-ship stock available in our warehouse today. Skip factory allocation delays and safeguard your production timeline with our immediate global shipping options.

Request a Quote for ADUM1250ARZ today—our team is standing by to provide real-time pricing and live inventory availability.

Download the official Analog Devices ADUM1250ARZ Datasheet PDF for full technical and packaging specifications.
