Scheme introduction:
Application field: security monitoring
Application scenario: video processing card, which is applied to the input and image processing part of the security surveillance camera

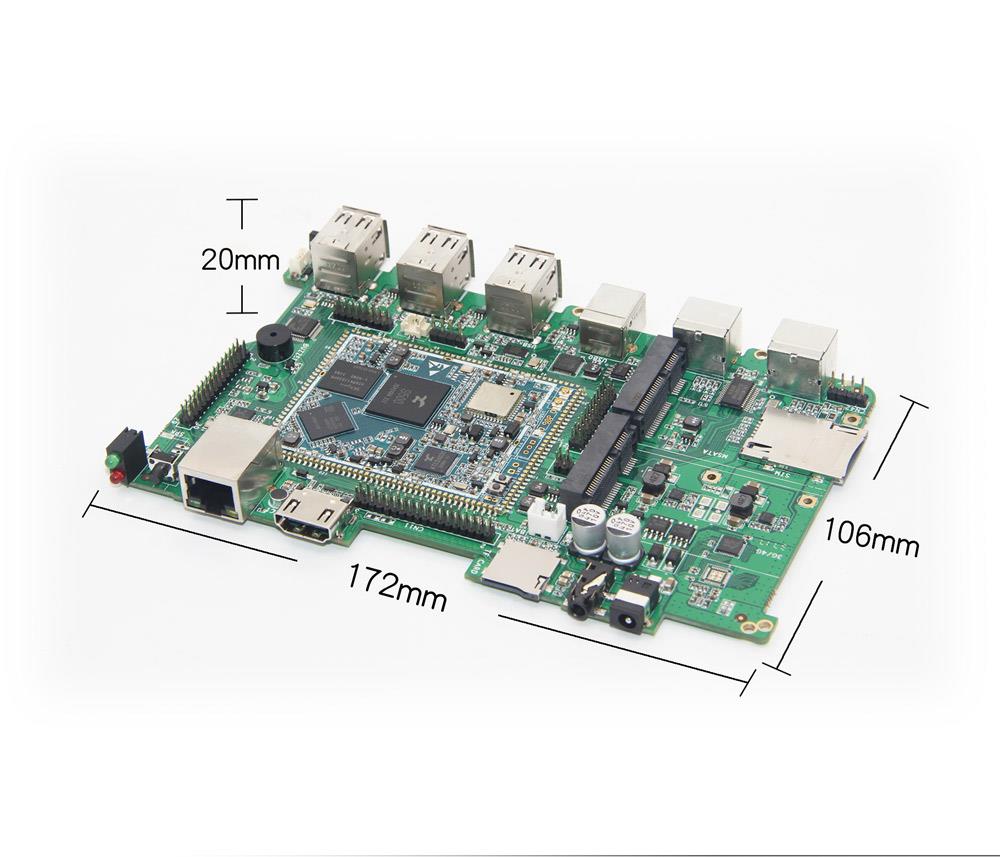

Delivery form: PCBA
Performance parameters:
L The S500 and quad core Cortex-A5 with Actions are used, with the dominant frequency up to 1.1GHz
L 1GB/2GB LPDDR3 memory, 8GB/16GB high-speed eMMC memory
L External storage interface TF card slot\
L Powerful PWR SGX544 graphics processor is used to support H.264 and video hard decoding
L Support dual LVDS/RGB/MIPI display, select either of them to support dual display
L Support capacitive multi touch screen
L Support single 720P USB camera input, TV IN and DVP 200W; The scheme supports dual cameras, DVP/mipi interface and high cost performance
L Multichannel USB HOST 2.0, supporting USB3.0 OTG port
L Multiple serial port RS232, multiple serial port TTL
L One INPUT HIGH Trigger, one OUTPUT Control
l Android 5.1 & Linux Debian
L BT&WIFI 2.4GHz&5GB dual band WIFI
L Support multiple cost-effective 3G/4G communication modules
L 5V/12V input, can support built-in battery
l CubieBoard6、Einstein-S500、CubieAIO-S500
