Scheme introduction:
1、 Function description:
1. Power supply mode: DC12V.
2. One touch button controls two LED outputs, one is cold white, the other is warm white, and the initial brightness is 100%.
Power on does not work, single touch the switch, press the first time, the cold white light is on. Press the second time, the warm white light will be on. Press the third time, the cold white+warm white light is on. Press the 4th button to turn it off. Cycle in turn.
Press and hold the stepless dimming for a long time, and then press and hold it down for a long time, and then press and hold it up for a long time, and cycle accordingly (the time from the lightest to the darkest is 2.5s).
With continuous power on brightness memory function: power on again after power off, and the initial brightness is 100%
3. Indicator light: a white indicator light is always on.
4. The control board complies with the environmental protection function, with a size of 60mm * 110mm and a thickness of about 4.5mm (board+backlight board).

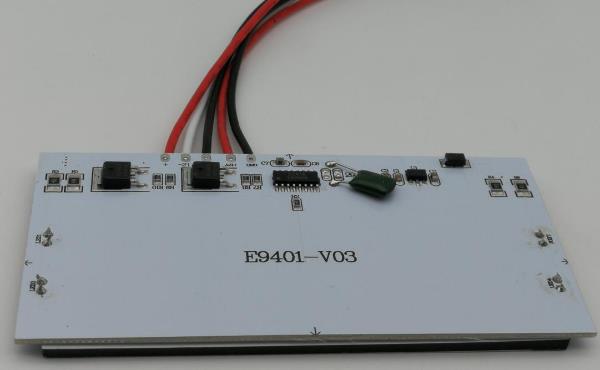

2、 Product Picture:
3、 Application scenario diagram:
performance parameter:
Industry classification: consumer electronics
Development platform: Holtek Hetai
Delivery form: PCBA
Performance parameters: model: E9401-V03, brand: ELITECHIP, working voltage: 12V, specification: 60 * 110mm
Application scenario: intelligent bathroom mirror, intelligent make-up mirror, touch switch mirror lamp.
