1.Learn about LDC1000

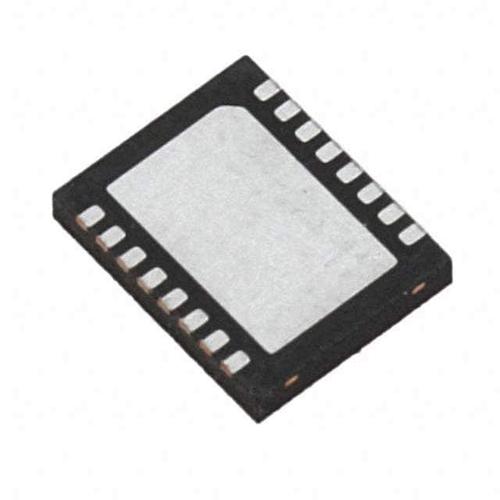

The LDC1000 inductance-to-digital converter is a high-precision inductance sensor that can convert inductance signals into digital signals and is often used in applications such as metal detectors. This electronic component is developed by Texas Instruments, and its main features are high sensitivity, low power consumption, high stability and fast response speed.
Introduction to LDC1000 Working Principle

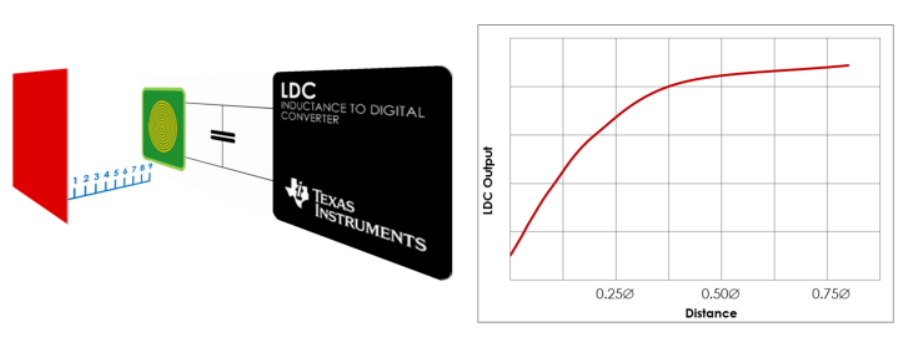

LDC1000 is a monolithic integrated inductance sensor chip, which can work only with an external inductor and resonant capacitor. Its typical working structure is shown in Figure 1:
Figure 1. LDC1000 System Structure Diagram
2.Working principle
When the LDC1000 is working, its output pin outputs a high-frequency excitation signal to the external inductor, and a high-frequency magnetic field will be generated near the inductor. At this time, when a metal object approaches, the high-frequency magnetic field will generate an eddy current effect inside the metal object , this eddy current will generate a new magnetic field and affect the original magnetic field, thereby changing the inductance and impedance of the original LC network, different approach distances, different metal types, and different metal sizes will have different effects. Therefore, through the change of inductance and impedance, the measurement of distance, metal type, size, etc. can be realized; and through the design of the system, the measured physical quantity can be extended to distance, angle, displacement, switch, force, deformation, vibration, physical quantity and so on, so the application of LDC1000 is very extensive.
3.Application example

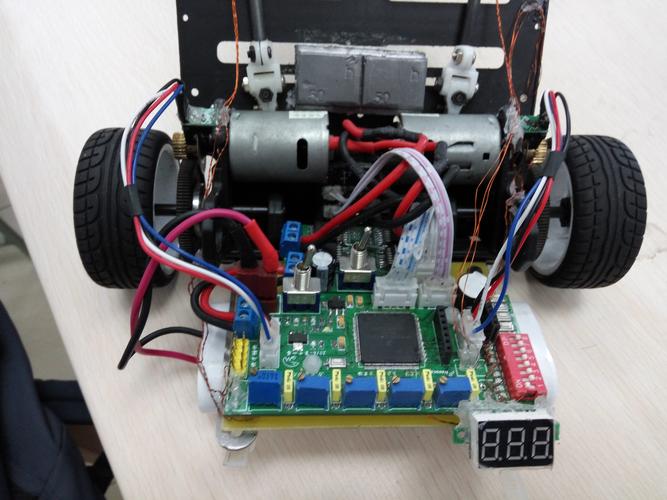

The metal detection trolley designed with LDC1000 inductance-to-digital converter and MC9S12XS128 single-chip microcomputer as the control core can detect specific metals within a certain distance below the probe in a test area of 500 mm×500 mm, and distinguish the different characteristics of metals. The control strategy of this kind of metal detection trolley is to scan roughly and then accurately locate, and control the swing arm equipped with LDC1000 inductance sensor to swing left and right for metal detection.
MC9S12XS128 is a high-performance 16-bit microcontroller, which is the control core of the metal detection car. It has the characteristics of high speed, low power consumption and multiple interfaces, and can effectively control the movement of the car. MC9S12XS128 integrates rich peripherals, including analog input and output, digital input and output, universal serial bus interface, etc., which can meet various needs of metal detection vehicles.
4.Application field
In addition to metal detectors, the LDC1000 inductance-to-digital converter can also be applied in many other fields, such as electrical engineering, automotive electronics, medical instruments, etc. In electrical engineering, the component can be used in inductance metering, power metering, and magnetic sensors; in automotive electronics, it can be used in vehicle stability control systems and driver assistance systems; in medical instruments, it can be used in Medical image processing and vital signs monitoring.
5.Summarize
In conclusion, the LDC1000 inductance-to-digital converter is a very useful electronic component that can be used in many fields, especially metal detectors and other fields that require high precision, low cost, and high sensitivity. Its appearance makes the manufacturing cost of metal detectors and other equipment lower, and also improves the detection accuracy and stability of the equipment.
In short, the LDC1000 inductance-to-digital converter is a very useful electronic component. In addition, TI officially launched other models such as LDC1314, LDC3114, etc. These types have their own characteristics, and the selection should be based on the actual situation.
